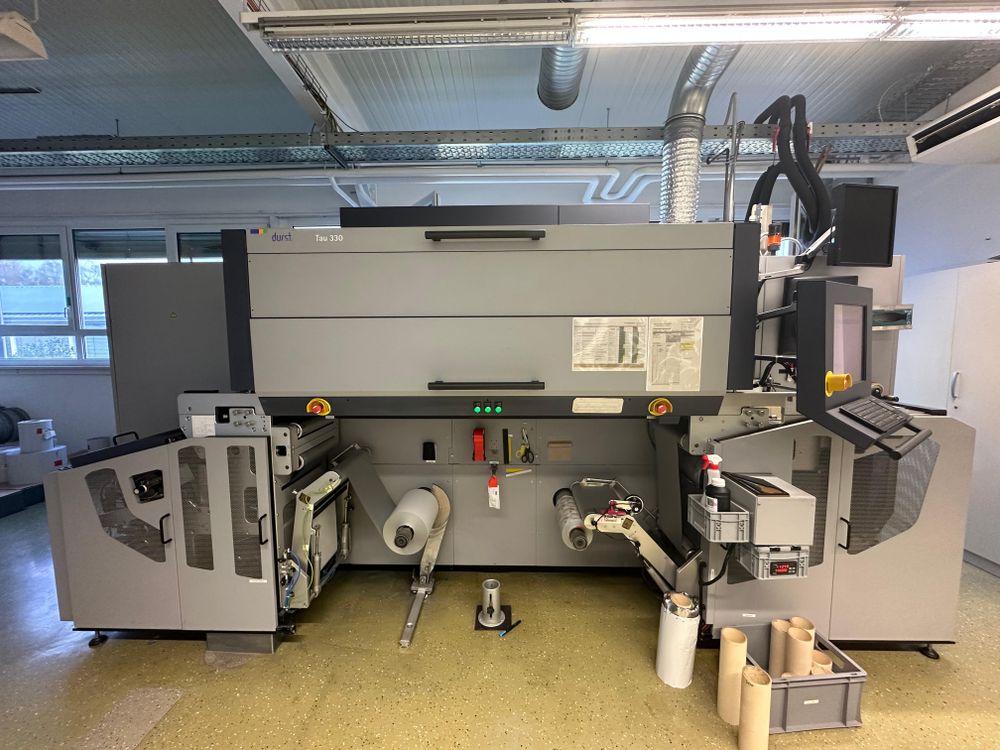

Durst TAU 330 LM 5 1750 mm

TECHNICAL DATA:
Type: 5-color digital UV inkjet press with separate white print unit
Length: 4550 mm
Width: 1750 mm
Height: 2200 mm
Weight: 3000 kg
Electrical power consumption: 39 kW / 60 A
Electrical supply: 400 V, 3 Ph, 50 Hz
Auxiliary power: 230 V, 50 Hz (chiller)
Air consumption: 100 NL/min
Cooling capacity requirement: 18 kW (60,000 BTU/h)
Data interfaces: USB 2.0, Ethernet
COOLING UNIT (RECOLD RE-C 160 INERT)
Cooling capacity: 16,000 W
Refrigerant type: R134a
Refrigerant charge: 4.5 kg
Power consumption: 8.5 kW
Maximum current: 15 A

PRINTING TECHNOLOGY:
Technology: Piezo DOD
Printheads: Xaar 1001
Resolution: 720 × 360 dpi
UV DRUING SYSTEM:
UV lamps:
· 1× Hönle UV GOZ, 7.2 kW
· 1× Hönle UV FOZ, 7.2 kW

Pinning: LED pinning after print units 1 and 5
Exhaust system: integrated lamp cooling and odor reduction unit

INERT GAS CURING SYSTEM:
Type: oxygen-reduced curing unit
Gas consumption: < 6 m³/h

WEB AND PRINTING PARAMETERS:
Process: roll to roll
Web width: 350 mm
Print width: 330 mm
Repeat length: 10–1000 mm
Register accuracy: ± 50 µm

Print tolerance:
· Single distance: ± 0.2 mm
· Cumulative per meter: ± 1.5 mm

Speed:
· 4-color mode: up to 48 m/min
· White ink: up to 30 m/min
· Adjustable speed range: 18–48 m/min

WEB TREATMENT AND HANDLING:
Corona unit: 1500 VA
Web cleaning: Polymer roller LC 350
Antistatic units: 3 pieces
Edge guiding: before print module
Roll diameter (unwind/rewind): max 610 mm
Roll weight (unwind/rewind): max 120 kg
Shafts: pneumatic expanding shafts, 76 mm
Splice table: integrated cutting and splicing table

SUPPORTED SUBSTRATES:
Coated and uncoated paper
PP, PE, PVC, POPP (white or transparent)
Aluminum foil (coated or uncoated)
PET films
Acrylic coatings
CN-based primers
PET-based primers
Hybrid dispersion primers

INK SYSTEM:
Ink type: UV-curable, low migration
Food & pharma compliance: indirect contact
Free monomers:
< 10 ppb
Ink laydown: 8.2 g/m² at 100% area coverage
Cartridge replacement: possible during printing
Cartridge empty signal: optical or acoustic

PRINTHEAD MAINTENANCE:
Ink recirculation system: enclosed design
Automatic daily cleaning: suction cleaning before operation
Manual cleaning: lint-free cloth

SOFTWARE:
RIP software: Esko Artwork
ICC profile management
Supported data formats: PDF-X1, PDF-X3, EPS, AI
Internal storage for designs
Setup storage for unlimited substrate types
Touchscreen operator panel

CONTROL AND SAFETY:
UV lamp overheating and function monitoring
Machine interlock on UV system failure
Ink level warning
Emergency stop
