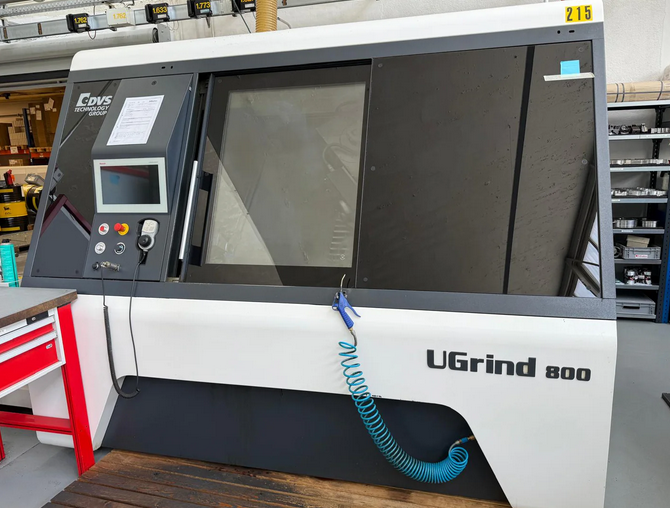

DVS UGRIND 800

Ref : 2772356-3-MT

Condition : Used

Manufacturer : -

Model : DVS UGRIND 800

Year(s) : 2017

Quantity : 1

Location : Seller or machines location:
EUROPE (Western and Northern)

Z Axis Travel: 1200 mm
X Axis Travel: 250 mm
Control: Rexroth IndraControl V
Max Workpiece Diameter: 500 mm
Min Workpiece Diameter: 130 mm
Grinding Spindle Motor: 25 kW
Workpiece Spindle Motor: 24 kW
Workpiece Spindle Speed: 0–500 t/min stepless
Operating Time: 12,000 hours
Voltage: 50 Hz 3x 400 V
Machine Weight: 7000 kg
Overall Dimensions (L x W x H): 2850 x 2490 x 2290 mm
Coolant System: Yes
Coolant Filter System: Yes
Measuring Feeler Gauge: Yes
Set of Flanges for Internal Grinding: Yes
Set of Flanges: Yes
Lamp: Yes
Tool Cabinet: Yes
Electronic Handwheel: Yes
