Dye FPF-2C-4000 2,000 rpm

Ref : 2749777-3-AW

Condition : Used

Manufacturer : Dye

Model : FPF-2C-4000

Type : -

Spindle Speed : 2,000 rpm

Year(s) : -

Quantity : 1

Location : Seller or machines location:
EUROPE (Western and Northern)

Last check : 07 Oct. 2025

• Table length 4,500 mm
• Table width 2,000 mm
• Column spacing 2,650 mm
• Longitudinal travel "X" 4,500 mm
• Transverse travel "Y" 3,000 mm
• Vertical travel "Z" 850 mm
• Spindle travel "W" axis only positionable 250 mm
• Longitudinal speed 10 m/min
• Transverse speed 10 m/min
• Vertical speed 10 m/min
• Milling power 30 kW
• Milling speed 2,000 rpm

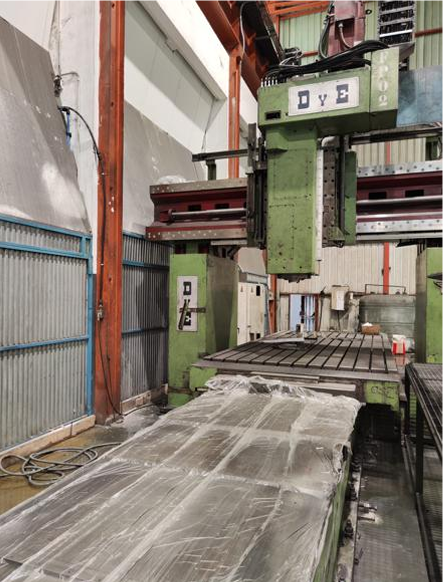

The machine is disassembled.
It has been mechanically overhauled, with a retrofit of the hydraulic, pneumatic, and lubrication systems.
The electrical and electronic components are FIDIA, but have not been put back into operation.
If necessary, an electronic upgrade can be offered.
