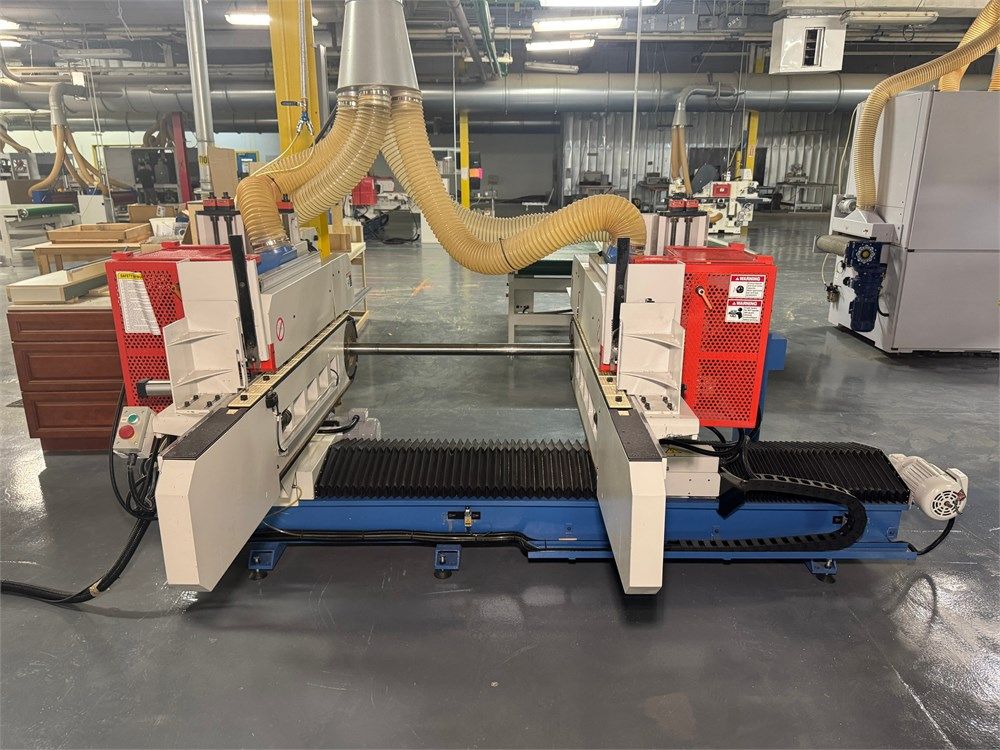

E0T-640 Double Trim Saw

E-Chain E0T-640 Double Trim Saw
Condition: Used – Good Operating Condition
Voltage: 480V
Phase: 3 Phase
Frequency: 60 Hz
Machine Type: Double Trim Saw

Key Features:
Double trim saw configuration
Hopper-fed loading system
Heavy-duty chain feed transport
Simultaneous left and right side trimming
Top and bottom saw units on both sides
Custom dust collection manifold
Industrial control cabinet included
Continuous production design

Material Handling System:
Feed System :
14" load space
Heavy-duty 2-1/2" wide feed chain
Hopper-fed material loading
Continuous production configuration

Capacity:
Maximum working width: approximately 72"

Saw Configuration:
Left-Hand Side:
Top saw unit
Bottom saw unit

Right-Hand Side:
Top saw unit
Bottom saw unit

The four-saw arrangement allows simultaneous trimming and sizing operations
while maintaining production efficiency and consistent finished dimensions.

Dust Collection:
Custom dust manifold system included
Designed for centralized dust extraction connection
Supports improved chip and dust evacuation during operation

Electrical Specifications:
Voltage: 480V
Phase: 3 Phase
Frequency: 60 Hz
