E4‑1530D undefined

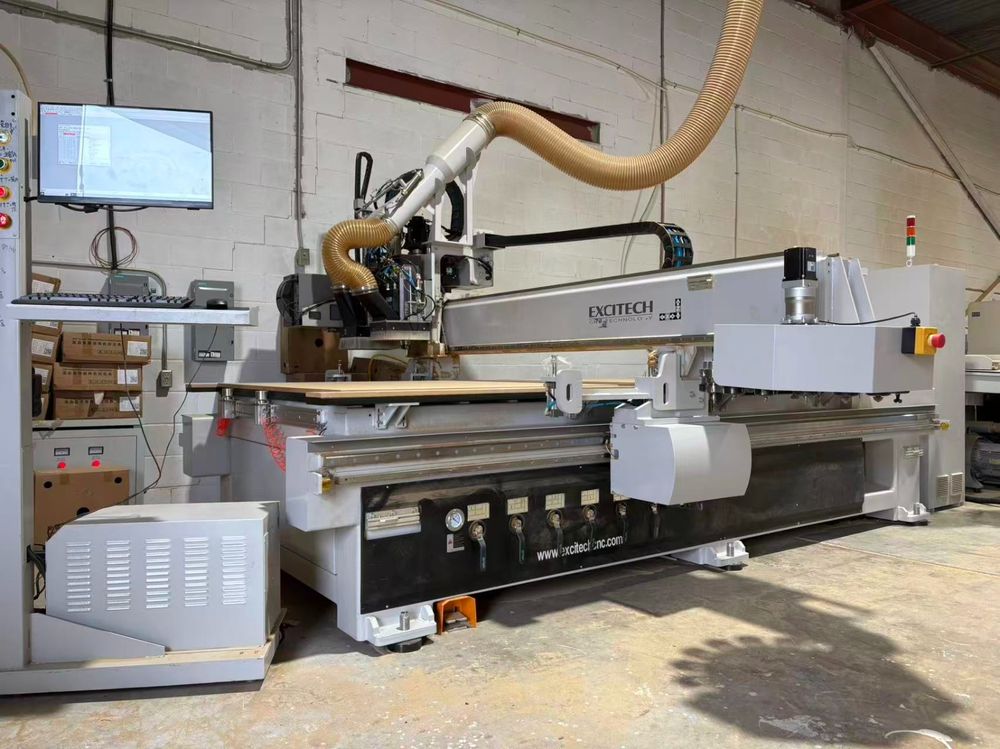

CNC Router
Working Area & Motion:
Table size: 5' × 10'
Machine design: Fixed table, moving gantry
Z‑axis stroke: 200 mm (7.8")
Reference system: Pneumatic reference stops
Vacuum system: Selectable vacuum zones

Drive System :
X & Y axes: Rack & pinion drive
Z axis: Ball screw drive
Gear reducer: Shimpo

Spindle & Routing :
Spindle manufacturer: HSD
Power: 12.75 HP (9.5 kW)
Tool holder interface: HSK, quick‑change
Spindle speed: Variable, up to 24,000 RPM
Cutting speed: Up to 75 FPM
Automatic tool changer: 16‑position rotary ATC
Includes: (8) tool holders

Drilling Unit :
Drill configuration:
(9) vertical spindles
Designed for cabinet hardware preparation, line boring, and dowel drilling applications

Vacuum System:
Vacuum pump: Becker
Power: 7.5 HP
Provides reliable workpiece hold‑down for nested routing operations

Control System :
Controller: OSAI system
Interface: PC‑based control on mobile stand
Operating system: Windows
Input devices: Standard keyboard and mouse

Electrical Requirements :
Voltage: 380 V
Frequency: 60 Hz
Phase: 3‑Phase
Includes: External electrical transformer

Applications :
Cabinet and casework production
Nested‑based panel processing
Furniture components
Routing, drilling, pocketing, and contouring
Small‑ to medium‑production environments
