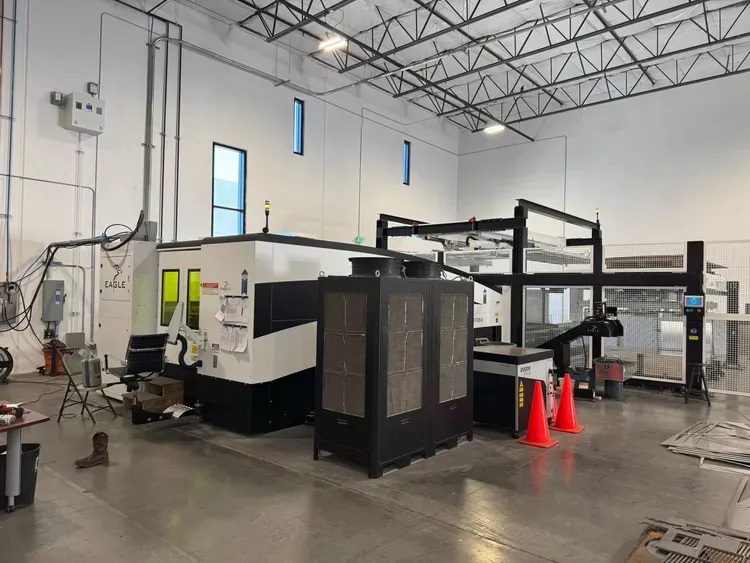

Eagle InSpire 2040 CNC CONTROL

EAGLE InSpire 2040
Year: 2023

Fiber Laser with eVa Cutting Head
Fiber Laser Source
Linear Motors on All Axes
Absolute Linear Encoders, Carbon Fiber Traverse Bridge
Automatic Pallet Changer, Laser Power Source

Machine model iNspire 2040
Drives on all axes Direct linear motors
Working Area [mm] 2000 x 4000
Maximum weight of processed material [kg] 900
Z axis range [mm] 100
Positioning speed– X axis [m/min] 250
Positioning speed– Y axis [m/min] 250
Positioning speed– Z axis [m/min] 250
Simutaneously positioning speed [m/min] 350
Accelerations for X and Y axes [m/s2] 60 (6G)
Cutting accuracy (1mm sheet) +/-[mm/m] 0.05
Maximal cutting speed [m/min] 150
CNC: Control Beckhoff TwinCAT CNC
Positioning accuracy +/- [mm] 0,05
Repeatability [mm/m] 0,03

LASER SOURCE DATA:
Laser type Ytterbium Fiber Laser YLS
Wavelength [μm] 1.07
Beam quality mm x mrad 4,5
Frequency [kHz] 5

EAGLE iNspire 2040 20kW 6g Acceleration (LINK) includes:
Linear Motors on All Axes (LINK)
Polymer Granite Base
Carbon Fiber Bridge
eVa® Ultrahigh-Power Cutting Head (patented)
eSoft Drawing, Nesting, Quoting software
Integrated conveyor
HRS Height Regulation System
Collision Sensing
Sheet Position Recognition
Eagle AC – Auto Centering and Nozzle Cleaning
Fairmont Gas Panel – For Assist Gas and Compressed Air
Drop & Cut with Internal Camera (patented)
CutEye Rapid Sheet Locatior
Second Operator Station
Transverse Conveyor
MixLine Gas Mixing
CraneMaster Loader/Unloader
Production Start Up Parts and Consumables
Dust Collector System – Inside Installation
EagleEye Laser Diagnostics
DVR© (LINK)

20,000 Watts
86 kVA
