Eagle PRESS SC2-400-108-48 400 TONS @ 1/2 IN A.B.C.D

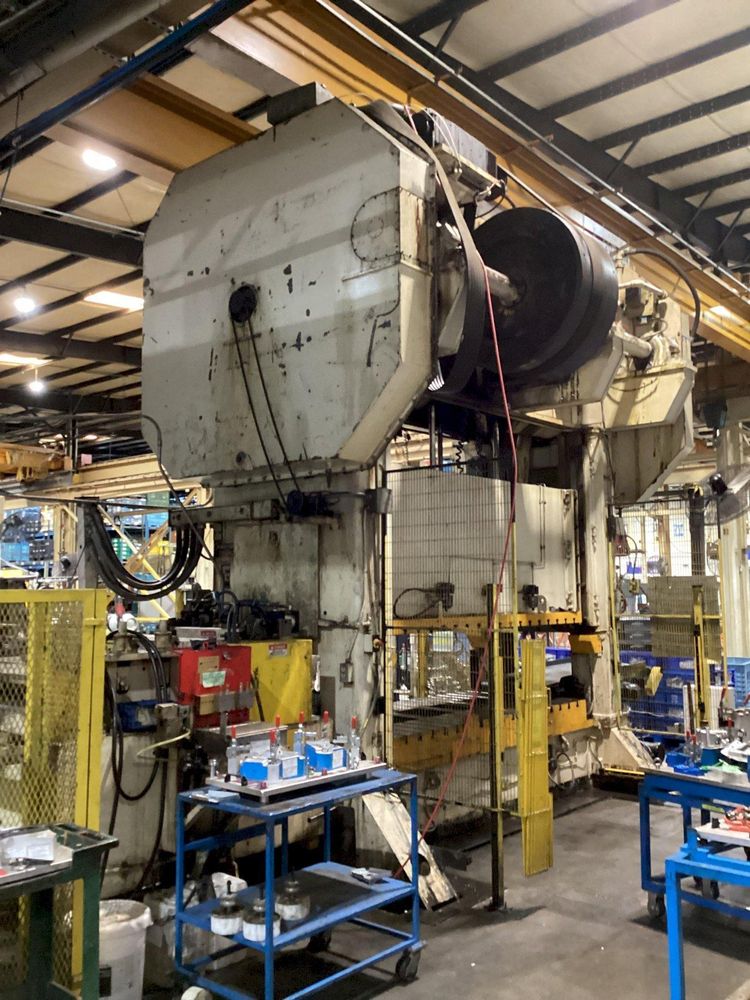

EAGLE PRESS SC2-400-108-48
Year 1998


TYPE OF PRESS: S2 (STRAIGHT SIDED 2 POINT)
CAPACITY OF PRESS: 400 TONS @ 1/2 IN A.B.C.D
BED AREA: 108.00 IN. X 48.00 IN.
STRUCTURE: 4 PIECE FRAME, WELDED CONSTRUCTION
PRESS DRIVE: SINGLE BACK GEARED, TWIN END DRIVE
ENERGY TRANSMISSION: BACKSHAFT & FLYWHEEL DRIVEN BY 75HP ELEC. DC MOTOR-460V
STROKE OF SLIDE: 12.0 IN
SLIDE ADJUSTMENT: 6.0 IN MOTORIZED BALL - TYPE PITMAN
STROKES PER MINUTE: 25 - 50 S.P.M (CONTINUOUS)
STROKES PER MINUTE: 10 STPM (SINGLE TRIPS PER MIN @ 25 S.P.M SYNCHRONOUS SPEED)
MAXIMUM SHUT HEIGHT: 32.0 IN. OVER BOLSTER (S.D.A.U)
CLUTCH: PNEUMATICALLY CONTROLLED FRICTION DISC.
BRAKE: SPRING SET AIR RELEASE
SLIDE: PNEUMATICALLY COUNTERBALANCED "T" SLOTTED @ 6 IN CENTRES
BOLSTER: 7.0 IN. "T" SLOTTED @ 6 IN. CENTRES
LUBRICATION: CENTRAL AUTOMATIC CONTINUOUS
OVERALL DIMENSIONS: H 228" W 180.6" D 120.1"

ELECTRICAL REQUIREMENTS
VOLTAGE: 460
PHASE: 3
CYCLE: 60
MAIN MOTOR HP: 75 HP DC (RELIANCE 1325-DR-B075517)
SLIDE ADJ MOTOR HP: 1.5 HP
LUBRICATION MOTOR HP: 0.5 HP

FEEDLINE:
ITEM: FEEDER
MFG: COE
MODEL #: CPRF-730
MAX WIDTH: 30"

ITEM: UNCOILER
MFG: COE
MODEL #: CPR-20030
MAX WIDTH: 30"
MAX WEIGHT: 20,000 LBS

ITEM: STRAIGHTNER
MFG: COE
MODEL #: CPR-20030
MAX WIDTH: 30"

ITEM: TEK SPRAY
MFG: A-S MFG
