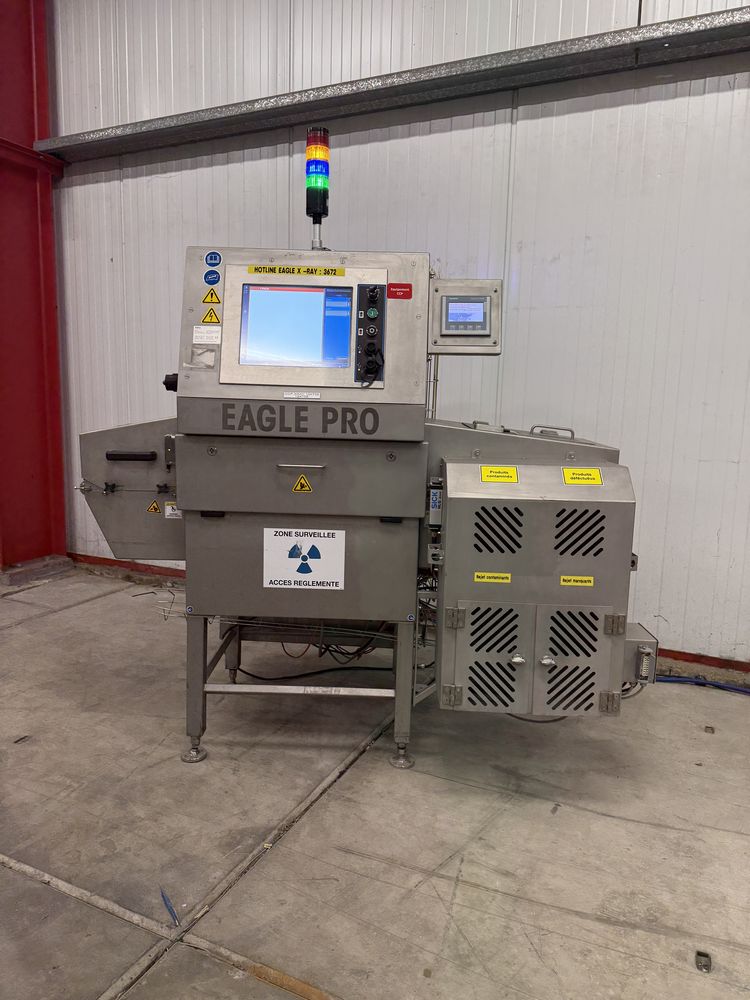

Eagle PRO Pack 240 PRO -Ray Inspection

Inspection Area

Maximum inspection width: up to 242 mm
Maximum inspection height: up to 101 mm
Conveyor width: approximately 298 mm


Detection Capabilities

Detection of metal, glass, stone, mineral bone, and dense plastics
Product integrity checks:
Missing or broken items
Shape and position verification
Fill level and mass/weight control (2-, 3- or 5-zone analysis)

X-Ray Technology
Detector resolution:
Up to 0.4 mm (PXT™ dual-energy)
1.2 mm single-energy

Software & Controls
15” full-color touchscreen HMI
Eagle SimulTask™ PRO image processing software
Windows 10 Enterprise operating system
Remote diagnostics via TeamViewer™


Conveyor & Speed
Variable belt speed: 17 – 114 m/min, depending on configuration and product

Connectivity
USB 2.0
Ethernet 10/100/1000
Optional EtherNet/IP Fieldbus integration

Construction & Safety
Hygienic stainless-steel design (IP65/IP66 optional)
Low radiation emission: < 1 µSv/h
Compliant with international X-ray and electrical safety standards (CE / FDA)

Operating Conditions
Operating temperature: 0 – 40 °C
Power supply: 230 V AC, 50/60 Hz, single phase
