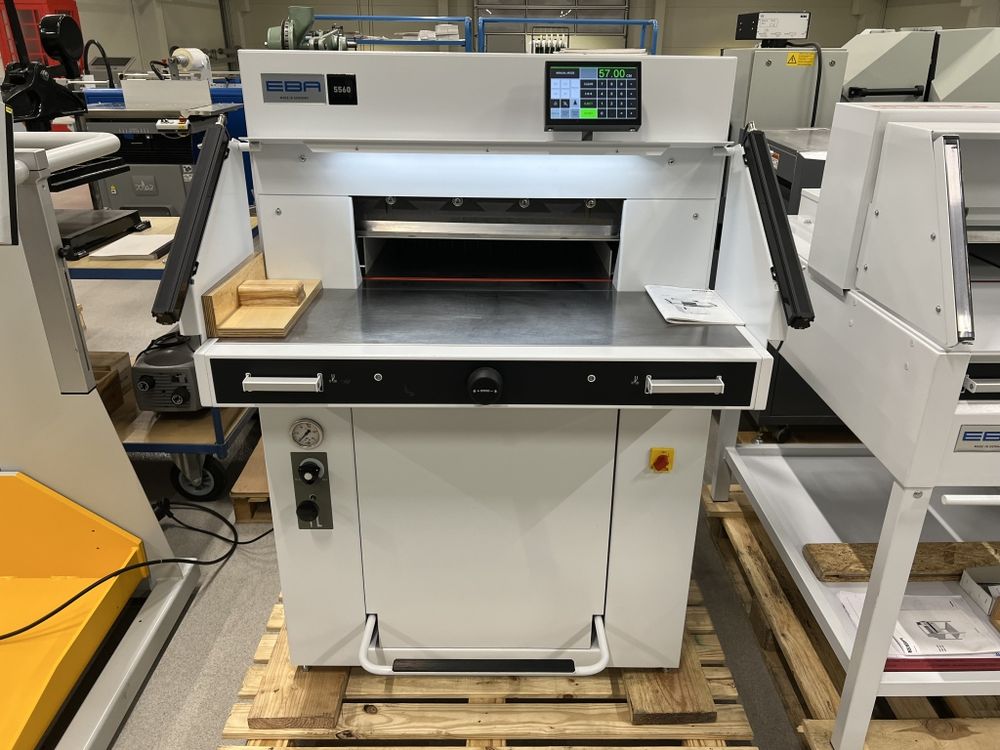

EBA 5560

Hydraulic guillotine
A high-performance, precise hydraulic cutter – for small and medium-sized printing houses,
intuitive and simple operation and at the same time the parameters of a large industrial machine.

Control:
99 programs, each 99 steps
data entry via LCD touch screen
electronic digital display with 1/10 mm accuracy
electronic handwheel with stepless speed regulation of the rear limiter
switching mm/inch
Hydraulic knife and pressure beam drive
Photocells
cutting line

Technical data:
Cutting length 550 mm
Infeed height 95 / 92 – with a strip under the beam
Infeed depth 570 mm
Front table depth 460 mm
Minimum final cut 32 / 60 mm – with a strip
Power supply 230 V / 50Hz
Power 1.5 kW
Weight 369 kg
Dimensions 1520 x 1400 x 1370 mm
