ECH Will 1750mm complete A3 / A4 line, sheet cutter with with ream wrapping, accumulator, boxer, palletizer

type SLK 175.8-L sheet cutter with 5 unwind stands

) Paper qualities (cut & wrapped): copy / offset paper weight 70-90 g/m².

Size A4: 210 x 297 mm long grain

A3: 420 x 297 mm short grain

Height of ream: 48 – 63 mm.

Wrapping material

- inside / outside PE – Laminated Bleach Kraft paper 90 g/m².

- inside PE - Laminated Bleach Kraft paper 110 g/m².

- Clear Wrap with PP film.

- outside Polyester - Laminated Bleach Kraft paper 90 g/m².



2) Cut-size-sheeter to produce A3 and A4 reams

8 pockets

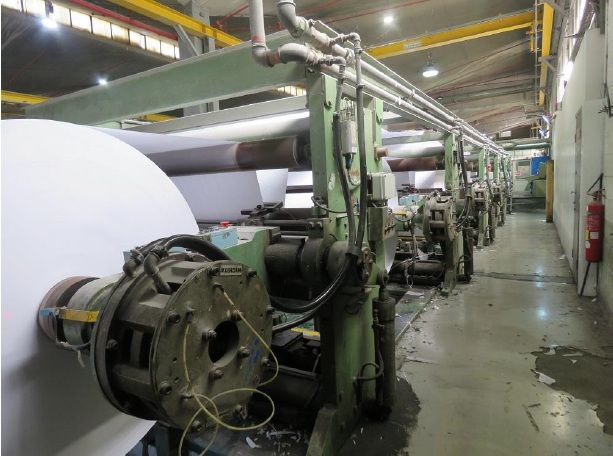

5x unwind stands, 1995.

Chuck diameter: 6".

Roll diameter: 1500 mm.

Working width: 1750 mm.

Production speed: 350 m/min.

Max package discharge reams / min:

94 reams / min (A4 - 500 sheets / ream)

47 reams / min (A3 – 500 sheets / ream)

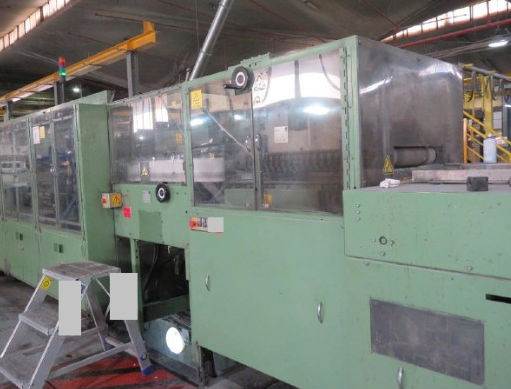

3) Ream wrapper Pemco Model 34 HSL. (2000)

4) Ream inspection/rejection system Pemco Model 124. (2000)

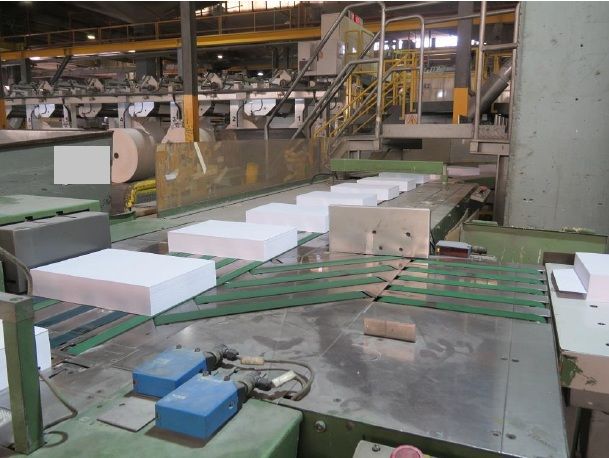

5) Ream stacker/accumulator. Pemco Model 135 L. (2000)

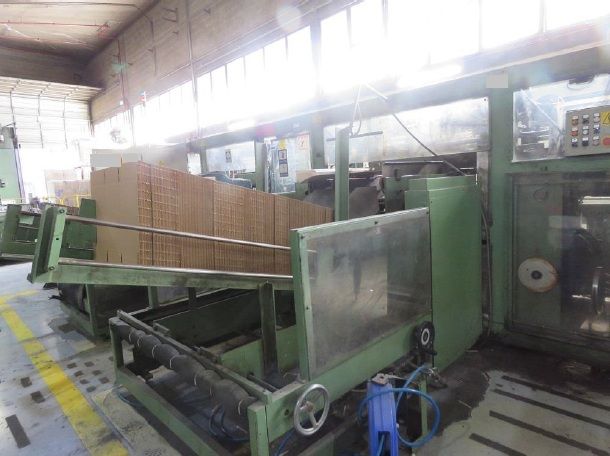

6) Case packer/lidder. Pemco 161 L- HS. (2000)

Formation single and double stacks:

- 10 reams / case: A4

- 5 reams / case: A4

- 5 reams / case: A3

Carton design

- E.Flut white top.

- Carton with lid board and side flap at the narrow side

in case of 5 reams and 10 reams in one carton.

7) Case labeler. Pemco Model 72 LHM (2000)

8) Case strapping machine. Pemco Model RO-TRS-4 (2000)

9) Hot-melt group type NORDSON.

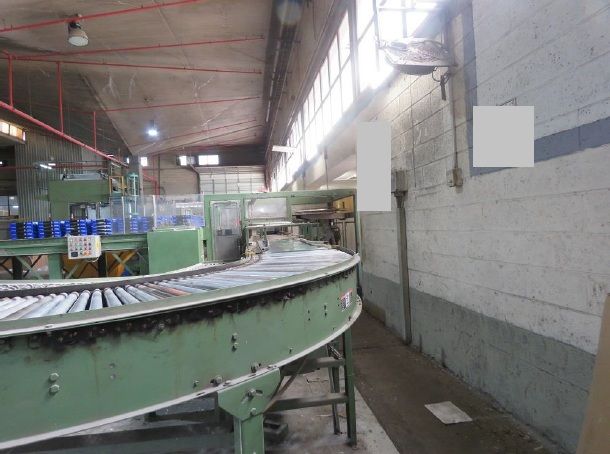

10) Connection conveyors Pemco 2000

10) Palletizer Certus Model CU-R 1.500 (2000)
