ECO-soft plus 140/3-ds/PL/EcoMaster 140/3 540-1500 Kg
EUROPE (Western and Northern)
ECO-soft plus 140/3-ds/PL.
Year of production: 2004
Working voltage: 400V AC 50Hz
Steam: 6 bar/0.6 Mpa
Cooling water: 3 bar/0.3 Mpa
Emission sound pressure level: 76dBA
ECO-soft plus 140 is a dyeing machine for textile woven, knitted and knitted fabrics in tow. Maximum temperature heating – 140 C Celsius.
The design of the machine has been developed with the aim of ensuring that the fabric is treated with care for all types of fibers and at the same time taking advantage of the variable modulus of the bath from 1:5 to 1:10.
This model is designed with a double harness for one reel, the loading weight for one accumulator is 100-250 kg (for one reel 200-500 kg).
Total load 600-1500 kg. Equipment in the version with spreader is equipped with a variable speed drive of 30 rpm at a frequency of 50 hertz.
Nozzle with a diameter of 100 mm.
Depending on the weight of the fabric being processed, the supplier can offer the supply of nozzles of various diameters 60,70,85,120 mm.

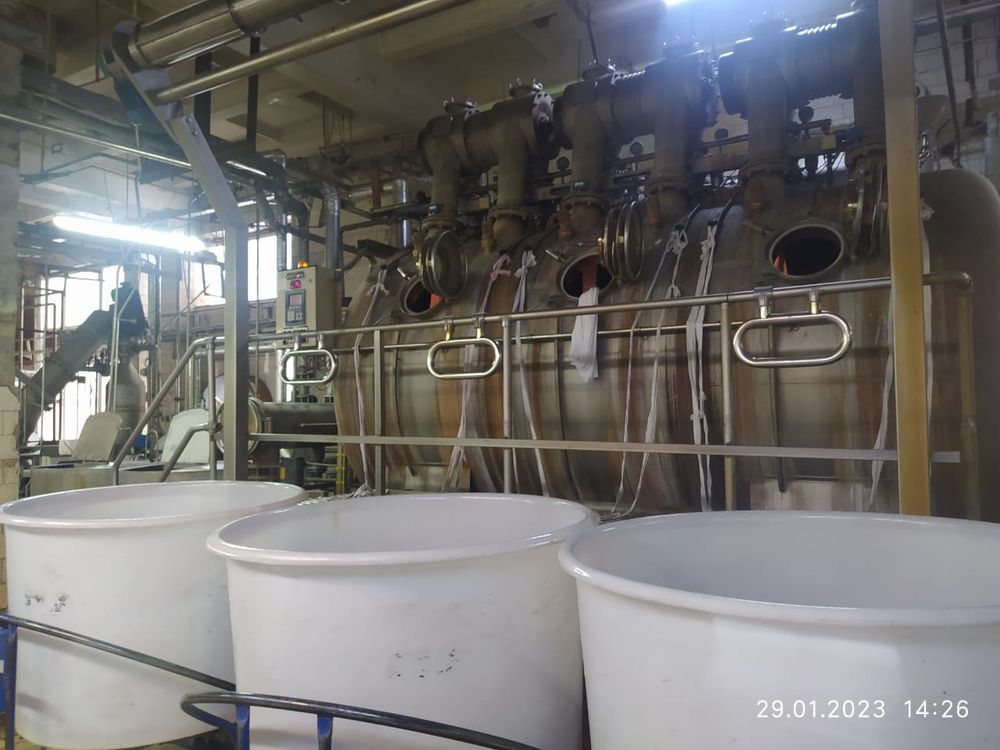

ECO-soft plus 140 includes the following structural elements:
- The dyeing kettle (autoclave) is equipped with 6 accumulators (double bundle version)
- Pump with circulation pipe
- Tank of additives
- Nozzle, inlet fitting, transport pipe
-Heat exchanger
-Filter
- Reel body with drive and support
- Unloading roller
- Service area.
EcoMaster 140/3.
Production year: 2007
Working voltage: 400VAC 50Hz
Control voltage: 230 V AC and 24 V DC
Steam: 6 bar/0.6 MPa
Cooling water: 3 bar/0.3 MPa
Sound pressure level: 76 dBA
It is a dyeing machine for textile woven, knitted and knitted fabrics in tow. Maximum temperature heating - 140 gr Celsius.
The design of the machine has been developed with the aim of ensuring gentle handling of the web of all types of fibers and at the same time taking advantage of the variable modulus of the bath from 1:5.
Loading weight per drive is 100-180 kg. Total load 300-540 kg.
Equipment in the version with spreader is equipped with a variable speed drive of 30 rpm at a frequency of 50 hertz.
Nozzle with a diameter of 100 mm. Depending on the weight of the fabric being processed, the supplier can offer the supply of nozzles of various diameters 60,70,85,120 mm.
EcoMaster 140/3 includes the following structural elements:
-Dyeing boiler (autoclave) is equipped with 3 accumulators
- Pump with circulation pipe
- Preparation tank
- Two tanks of additives
- Nozzle
-Heat exchanger
-Filter
- Reel body with drive and support
- Unloading roller
