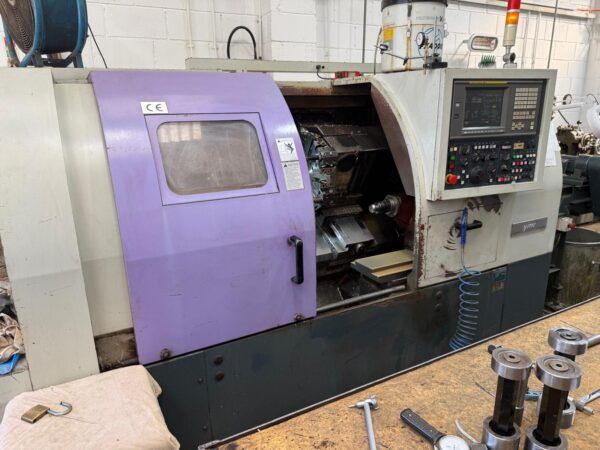

Ecoca Fanuc 18-T 4,200 RPM SJ-30 HT 2 Axis

X-axis travel 190 mm
Z-axis travel 520 mm
X-axis rapid traverse 15 m/min
Z-axis rapid traverse 20 m/min
Control Fanuc 18-T
Coolant tank capacity 147 L

Bar capacity 90 mm
Swing over bed 580 mm
Swing over cross slide 434 mm

Spindle speed 3,500–4,200 RPM
Spindle motor 25–30 HP (18–22 kW)
Spindle nose A2-8
Spindle bore 90 mm

Chuck size 254 mm (10″)
Turret 12-station hydraulic Curvic coupling

Tailstock quill diameter 90 mm
Tailstock quill travel 120 mm
Tailstock taper MT-5

Electrical requirement 40 kVA, 3-phase
Machine footprint 4,460 mm × 1,920 mm
Machine weight approx. 5,000 kg
