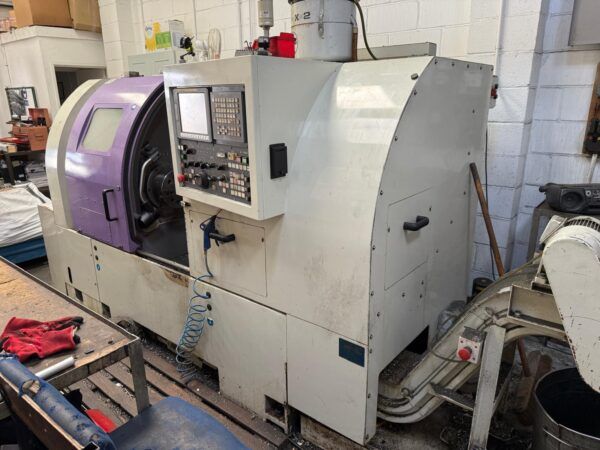

Ecoca FANUC Oi-TC 4,200 rpm SJ-30HT 2 Axis

X-axis travel: 190 mm
Z-axis travel: 520 mm
rapid traverse X: 15 m/min
rapid traverse Z: 20 m/min
control: FANUC Oi-TC
bar capacity: 90 mm
swing over bed: 580 mm
swing over cross slide: 434 mm
maximum turning diameter: 280 mm
maximum turning length: 460 mm

spindle speed: 3,500–4,200 rpm
spindle motor power: 25–30 HP
spindle motor power: 18–22 kW
spindle nose: A2-8
spindle bore: 90 mm

turret: 12-station hydraulic with Curvic coupling
chuck size: 254 mm
tailstock quill diameter: 90 mm
tailstock taper: MT-5
tailstock quill travel: 120 mm
feature: through-spindle coolant ready
coolant tank capacity: 147 L
construction: box ways
machine footprint: 4,460 × 1,920 mm
machine weight: 5,000 kg
electrical supply: 40 kVA
