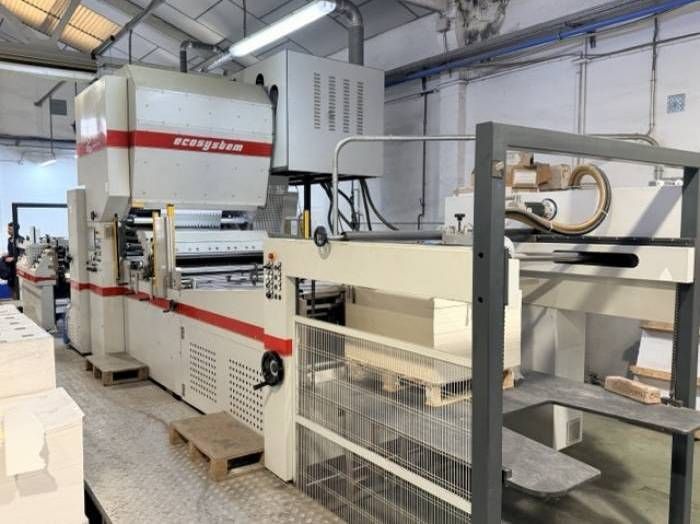

Ecosystem 120 Aqua Laminating, coating machine

Max.Size: 165 x 120 cm (64 x 47 inch)
Dual Technology Flexibility: Fully engineered to process both water-based adhesives and standard thermal film (thermofilm),
allowing print houses to switch between methods depending on job cost structures and material requirements.
Heavy-Duty Laminating Pressure: Equips an ultra-robust laminating nip system capable of delivering massive pressure
(up to 14 tons at 7 bar), ensuring a perfectly clear, bubble-free bond even on thick boards or dense ink coverage.
Ecosystem Costruzioni
Precision Separation and Hot Knife: Features an advanced, self-adjusting hot knife cutting system paired
with a continuous quality-monitoring control system.
This ensures instantaneous, clean sheet separation at maximum production speeds without edge fraying.
Energy-Efficient Drying System: Uses a high-capacity hot-air tunnel drying system integrated
with a dedicated heat exchanger, designed to sharply reduce the overall power requirements during water-based glue cycles.
he AQUA 120 is built on a fully automated, continuous layout to maximize throughput:
Non-Stop Automatic Feeder: High-pile, high-speed stream feeder designed to continuously load paper
or heavy cardboard sheets without pausing production.
Sheet Cleaning Device and Sidelay Unit: Ensures sheets are free of dust or anti-setoff spray powder
and perfectly aligned before entering the gluing/coating nip.
Calender and Unwinding Units: High-precision coating rollers for uniform glue distribution, alongside stable film reel tension controls.
Fully Automatic Stacker: Collects the separated, finished sheets into neat,
square piles ready for immediate downstream processes (like die-cutting or window patching).
