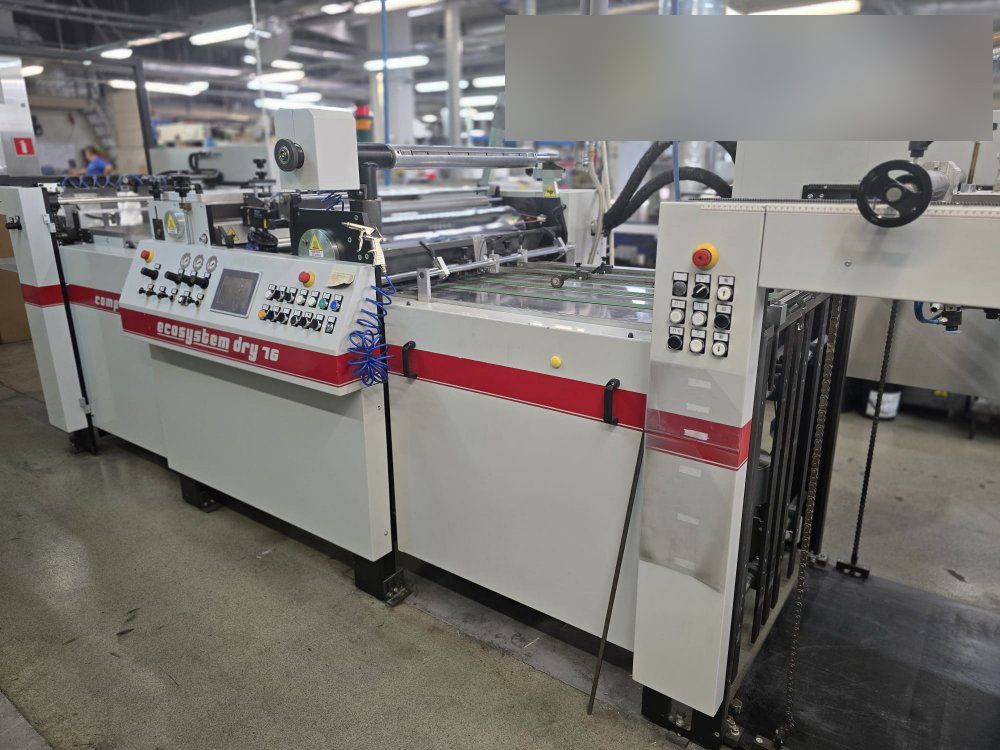

Ecosystem COMPACT 76 Thermal Laminator

TECHNICAL SPECIFICATIONS:
Max. sheet size (W x L): 760 x 1060 mm
Min. sheet size: 210 x 250 mm
Max. mechanical speed: 60 m/min*
Feeder output: up to 10,000 sheets/hour*
Paper weight: 115 – 600 gsm
Max. film width: 750 mm
Max. film roll diameter: 350 mm
Film core diameter: 3”
Working height (including pallet): 900 mm
Max. pile weight (including pallet): 750 kg
*Production speed depends on the materials used and the operator's skill.

POWER AND INSTALLATION REQUIREMENTS:
Electrical supply: 400 V, 3-phase + PE, 50 Hz
Power consumption: 31 kW
Compressed air: 700–900 nl/min at 8 bar
(Air compressor not included in the delivery.)

MACHINE COMPONENTS:
Automatic sheet feeder with suction table, electronically controlled feeding and timing (PIAB system)
Film unwinder with inline trimming system
Laminating unit with chrome-plated heated calender (water-circulation heating) and rubber pressure roller
External water heater unit with pressure system, pipework, and shut-off valves for the laminating calender
Sheet separation group with smoothing system, film perforation via abrasive wheel, and separation rollers
Hot knife system with Scatec laser correction – suitable for metallized PET, nylon, embossed and special films
Automatic stacker
Touchscreen control panel
Remote assistance system via Ethernet (client provides ADSL connection)
CE-compliant operation manual
Spare pressure roller with bearings and dedicated transport cart.
In excellent condition.
Can be seen in production.
