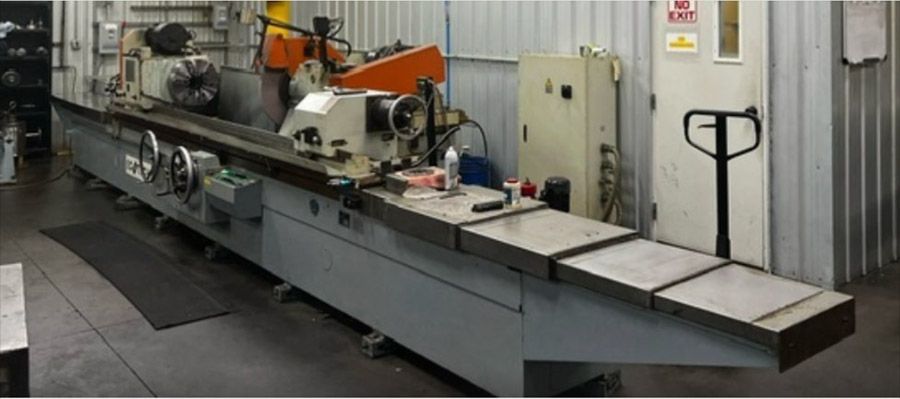

Ecotech MQ1350x3000

Maximum Diameter Ground 20"
Minimum Diameter Ground 1.2"
Center Height 10.6"
Max Length Ground 120"
Max Load 2,200 LBS
Table Travel Speed 4-157 IPM
Spindle Speed 870 RPM
Workhead Motor 8 HP
Table Swivel 7° +/- 3°
Wheelhead Travel 9.84"
Min Wheelhead Travel by Incremental Feed 0.0001"
Rapid Approach 3.93"
Workhead Speed 22-168 RPM
Taper in Workhead 6 MT
Taper in Footstock 6 MT
Tailstock Quill Travel 2.75"
Wheel Size 30" x 3" x 12"
Spindle Motor 22 HP
Power Requirements 3 Phase, 60 Cycle, 220 Volt
Approximate Weight 30,000 LBS
Equipped Hydraulic Table Traverse
Equipped Auto Infeed of the Grinding Wheel
Equipped Power Rapid Advance & Retraction of the Grinding Wheel
Equipped Infinitely Variable Workhead Spindle Speeds
Equipped Sony Magnascale DRO, 2-Axis Display
Equipped Wheel Balancer Start
Equipped Two Follow Rests
Equipped 18" 4-Jaw Chuck
Equipped Workhead
