Edelmann FORM PRINT 5

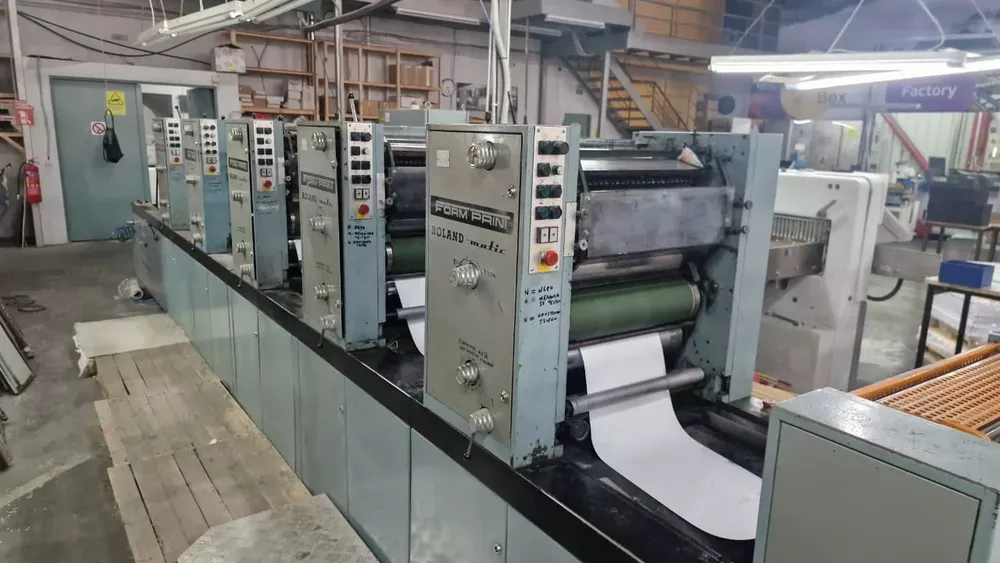

ONE (1) ROTARY PRINTING PRESS
The said machine is suitable for the production of sticky notes, forms, slips, computer forms, etc.

It consists of the following main components:
Main FormPrint machine
Paper roll printing unit, accepts rolls up to 100 cm in diameter
Paper tension and feeding system
Printing towers: five (5) offset printing units
Paper turning system
Perforation system for sprocket feed holes for computer forms production
Perforation system for filing holes
Alcohol-water mixing cooler
Paper roll rewinder, accepts rolls of 100 cm diameter
Forms folder
Conveyor belt transporting forms to stacker
Stackers, turner and others

Technical specifications:
Printing area: 460 x 420 mm
Maximum paper size: 485 x 450 mm
Printing thickness: up to 0.4 mm
Printing cylinders diameter: 3 mm
Production speed: 100 m/min
Forms production: 35,000 sheets/min
In sticky note production: 70–100 m/min

Accepts paper from 40–190 g/m²
Maximum paper cut length: 423.3 mm (or half)
Required power: 57 kW (46 kW)
Operating voltage: 380 V, 50 Hz, 3 phases
Stacker – Feeder
The offered stacker – feeder is from the SCHINDLER and is a 2009 model.
Machine condition – refurbishment:
