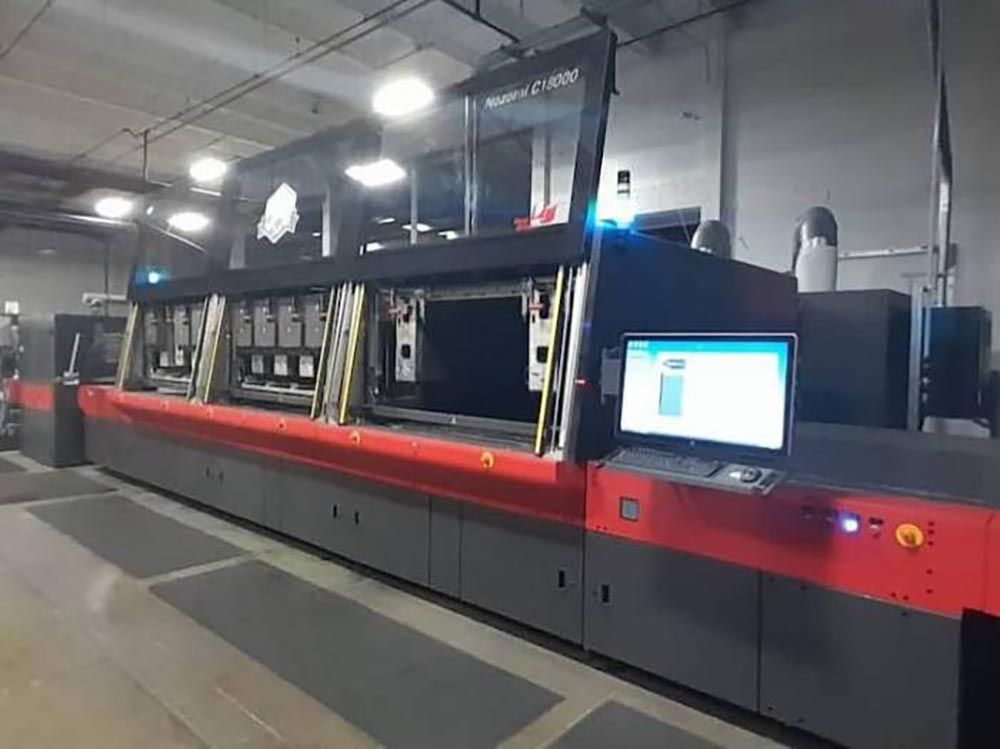

EFI Nozomi C 18000 1800 x 3000 mm

HANDLING MATERIALS:
Maximum board size 71 x 118 in
(1800 x 3000 mm)
Minimum board size (bottom feeder) 24 x 24 in
(600 x 600 mm)
Maximum board thickness 0.47 in (12 mm)

PRINTING TECHNOLOGY:
Maximum printing width 71 in (1800 mm)
Print speed Up to 246 linear ft/min (75 linear m/min)
Number of colors Up to seven DPI 360x360
360x720
Ink type EFI UV LED
Odorless, recyclable inks

Primer Included:
Digital front end Fiery NZ-1000
ENVIRONMENTAL SPECIFICATIONS
Configuration Footprint (LxWxH)
Four, six and seven colors with bottom feeder, standard coater and full stacker
120 ft x 36.44 ft x 10 ft
(36.5 m x 11.28 m x 3 m)
Operating current 350A at 380V or 280A at 480V supply
Standby current 30A at 380V or 25A at 480V supply
Maximum consumptions 790A at 380V or 618A at 480V supply
Type of cable 3F T // 3 poles

AIR:
Clean and dry air, 95 psi (6.5 bar)
Nominal operating at 10.6 cf/min (300 L/min)
Peak at 113 cf/min (3,200 L/min)
INKS:
Recommended temperature of storage
Maximum 68° F (20° C)
Printer in development; specifications subject to change wit
