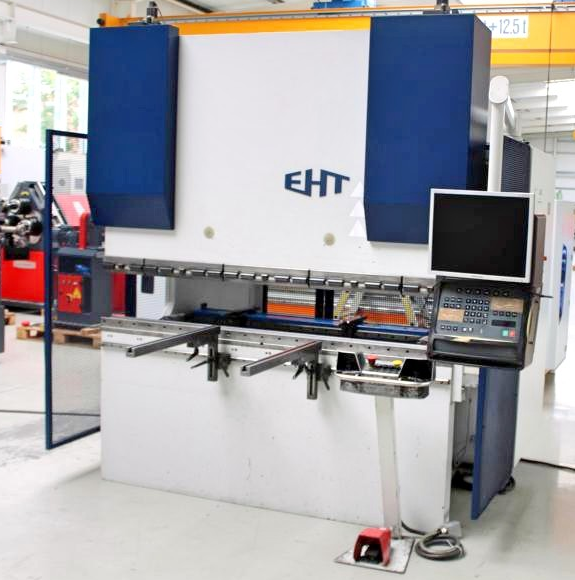

EHT EASYPRESS 85-20 85 t

Pressure: 85 t
Chamfer Length: 2050 mm
Distance Between Columns: 1650 mm
Column Arm: 400 mm
Stroke: 240 mm
Daylight: 320 - 560 mm
Adjustment Speed: 150 mm/sec
Working Feed: 15 mm/sec
Return Speed: 150 mm/sec
Back Stop Adjustable: 5 - 1000 mm
Table Width: 110 mm
Work Height Max: 1050 mm
Operating Pressure: 340 bar
Compressed Air: 4.5 - 6.0 bar
Oil Volume: 200 l
Total Power Requirement: 7.5 kW
Machine Weight: 5900 kg
Machine Dimensions (LxWxH): 4100 x 2100 x 2750 mm

Control Type: CNC
Control: CYBELEC CNC
CNC Axes: Y1, Y2, X, R, Z1, Z2, I
CNC Crowning: Yes
CNC Electro-Motorized Back Stop (X Axis) Travel Range: 5 - 1000 mm
CNC Electro-Motorized Back Stop (X Axis) Travel Speed: 250 mm/sec
CNC Electro-Motorized Height Adjustment (R Axis) Travel Range: 70 - 235 mm
CNC Electro-Motorized Height Adjustment (R Axis) Travel Speed: 100 mm/sec
CNC Electro-Motorized Stop Fingers (Z1 Axis) Travel Range: 405 - 1565 mm
CNC Electro-Motorized Stop Fingers (Z1 Axis) Travel Speed: 1000 mm/sec
CNC Electro-Motorized Stop Fingers (Z2 Axis) Travel Range: 485 - 1645 mm
CNC Electro-Motorized Stop Fingers (Z2 Axis) Travel Speed: 1000 mm/sec
CNC Electro-Motorized Table Crowning: Yes
CNC Pneumatic Die Displacement (I Axis): Yes
EHT Pneumatic Tool Clamping Upper Tool: Yes
EHT Manual Tool Clamping Lower Tool: Yes
Tool Holder Size: 90 mm + 13 mm
Freely Movable 2-Hand/Foot Control: 1 Unit
Front Support Arms with Sliding System: 2 Units
Side Protective Device: Swinging Doors
Rear Protective Device: Swinging Door
Oil Cooler for Continuous Operation: Yes
Original Operating Instructions and Circuit Diagram: Included
