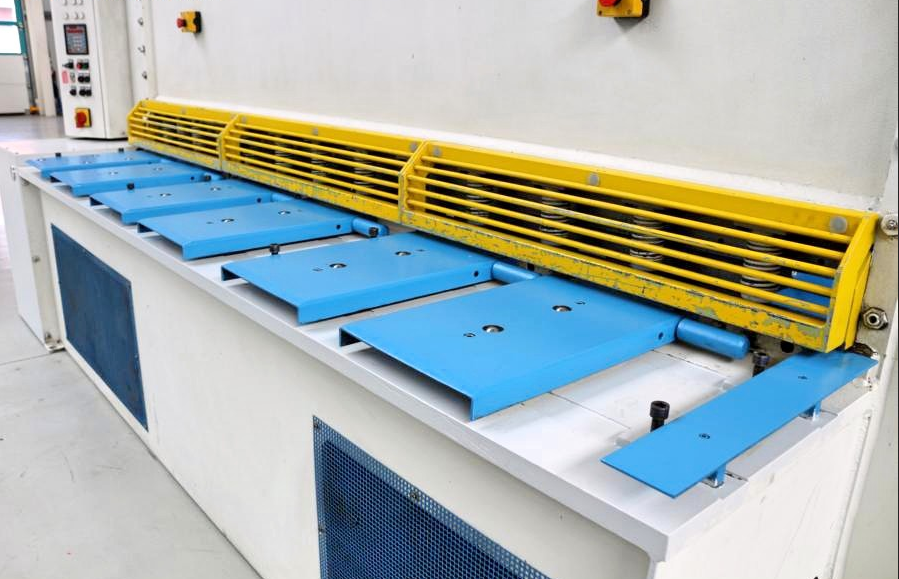

EHT ECOCUT 10-31 Hydraulic Plate Shear

EHT ECOCUT 10-31 Hydraulic Plate Shear
1998

Sheet width: 3050 mm
Plate thickness: 10.0 mm
Niro-steel capacity: 6.0-8.0 mm
Distance between columns: 3070 mm
Cutting angle: 1.0-4.0°
Strokes per minute: ~22
Down holder: 13 pieces
Control type: NC
Control system: ELGO P8721
Oil volume: 240 l
Voltage: 400 V
Power requirement: 17.0 kW
Weight: 8000 kg
Length: 3550 mm
Width: 2350 mm
Height: 1900 mm

NC electro-hydraulic guillotine shear
Sliding guided cutting system
Heavy-duty welded construction
Digital ELGO P8721 control unit
Electro-motorized backgauge
Electro-hydraulic angle adjustment
Front analog angle display
Side stop with T-slot
Support arm with T-slot
Support arm with T-slot
Support arm with T-slot
Ball transfer work table
Foldable finger guard
Foot switch
Emergency stop button
Emergency stop button
