EHT ECOCUT 10-31

Sheet width: 3050 mm
Plate thickness: 10.0 mm
Stainless steel thickness: 6.0–8.0 mm
Downholder: 13 pcs
Distance between columns: 3070 mm
Cutting angle: 1.0–4.0°
Number of strokes: ~22 strokes/min
Control: ELGO P8721
Oil volume: 240 l
Voltage: 400 V
Total power requirement: 17.0 kW
Weight: 8000 kg
Machine dimensions (LxWxH): 3550 x 2350 x 1900 mm

NC electro-hydraulic guillotine shear "Sliding Guided"
Heavy-duty welded construction machine body
NC ELGO digital control unit P8721
NC electro-motorized backgauge on recirculating ball screws
Electro-hydraulic cutting angle adjustment with front analog display
1x stable side stop with T-slot and mm scale
3x stable support arms with T-slot and mm scale

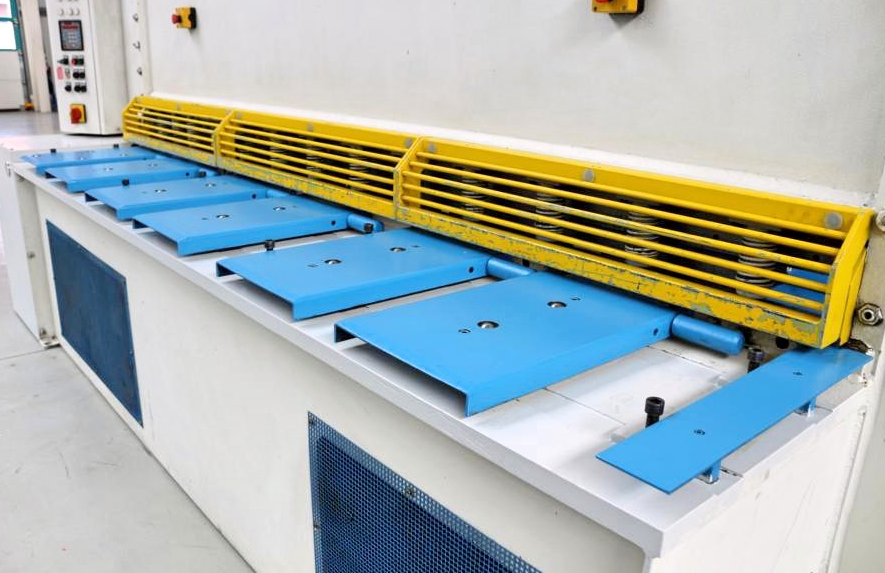

Ball transfer units in work table including recessed grips
Front finger guard foldable at the front
1x freely movable foot switch
2x emergency stop buttons at the front
Operating instructions (PDF)
Pneumatic sheet holding device for thin sheet metal blanks movable on casters
1x used set of scissor blades
