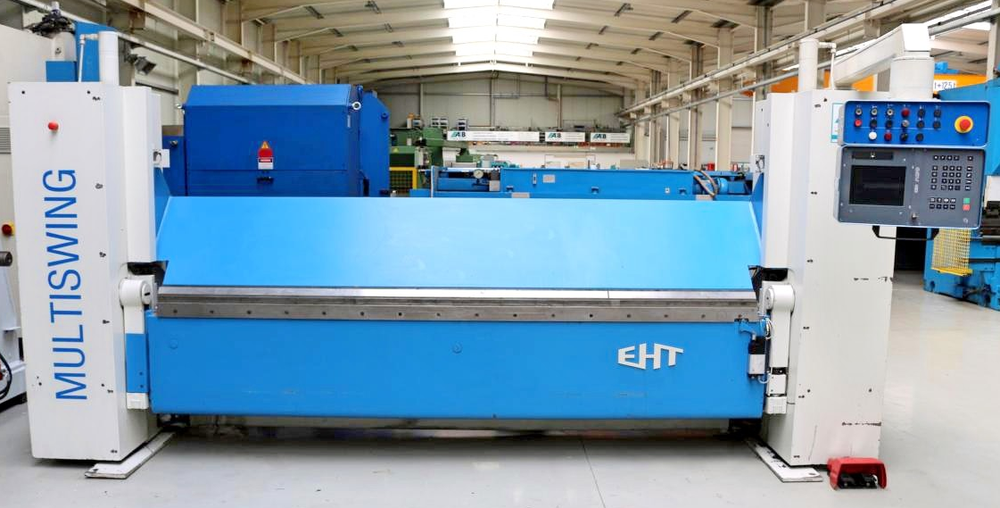

EHT MULTISWING 4 - 32 Sheet width: 3200 mm

Clamping capacity max.: 200 kN
Plate thickness: 4.0 mm ST
Distance between columns: 3300 mm
Upper clamping bar adjustment: 400 mm
Adjustment folding beam: 80.0 mm
Pivoting angle: 180°
Rear stop: 10.0 - 1600 mm
Oil volume: 160 Liter
Total power requirement: 9.8 kW
Weight: 8500 kg
Range L-W-H: ~4900 x 2000 x 2300 mm

Features

Robust CNC folding machine
CNC control unit - CYBELEC "DNC 80 PP"
Swiveling control panel, front right
2D graphic display for display and multiple simulation
2D graphic programming
Easy handling
CNC electro-motorized backgauge
Travel range 10.0 - 1,600 mm
Pneumatic / lowerable stop fingers
Adjustment speed max. 250 mm/sec.
Rear sheet support table with brushes
Electro-motorized lower beam adjustment (S axis)
Electro-hydraulic pivoting movement of the lower beam
Pneumatic upper tool clamping
Pneumatic lower tool clamping
1x freely movable double foot switch
Original operating instructions + wiring diagram/hydraulic diagram
1x split set of goat's foot upper tools, H = 150 mm (not complete)
1x split set of goat's foot upper tools, H = 200 mm (not complete)
1x split bending/lower tool
Rear sheet support with brushes
