EHT TSS 4-30

EHT TSS 4-30
Year of Manufacture: 1998

Sheet width: 3050 mm
Plate thickness (standard steel): 4.0 mm
Plate thickness (stainless steel): 2.5 mm
Cutting angle adjustment: 1.0°
Down holders: 21 pieces
Oil volume: 160 liters
Strokes per minute: 18 - 31
Control: ELGO
Hydraulic pressure: max. 300 bar
Voltage: 400 V
Main drive: 9.0 kW
Machine weight approx.: 4800 kg
Machine dimensions (L x W x H): 3660 x 2070 x 2140 mm

Features:

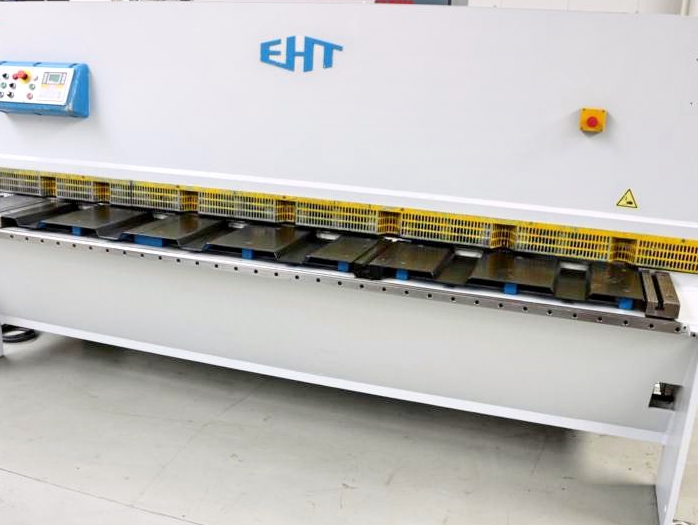

Electro-hydraulic swing cut sheet metal shear
All-steel welded construction frame
ELGO NC control with front-left control panel
Motorized backgauge positioning via three-phase motor and toothed belt
Support table with ball transfer rollers
Grip recesses between table plates
Front finger guard
Hydraulic sheet metal hold-down clamps
Freely movable foot switch
Front emergency stop button
Movable scrap diverter at rear
Original operating instructions and circuit diagram

Special accessories:
EHT pneumatic holding device for thin sheet blanks
EHT extra-long side stop with mm scale and support foot
EHT front movable support arm
