EHT TSS 4-30

Sheet width 3050 mm
Plate thickness 4.0 mm ST
Thickness at stainless steel 2.5 mm
Cutting angle adjustment 1.0°
Down holder 21 pcs
Oil volume 160 l
Strokes per minute 18–31
Control ELGO
Max pressure 300 bar
Voltage 400 V
Main drive 9.0 kW
Machine weight 4800 kg
Machine dimensions 3660 x 2070 x 2140 mm

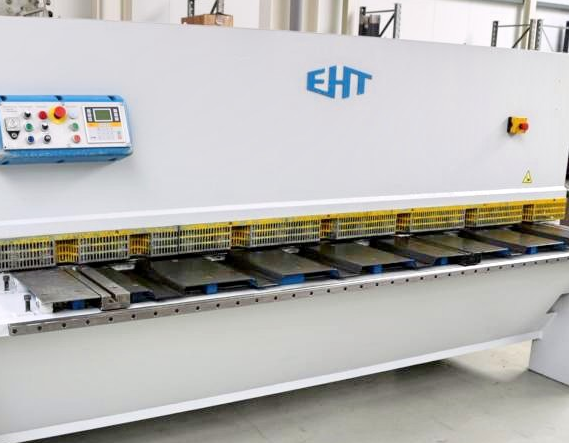

Electro-hydraulic swing cut sheet metal shear
All-steel welded construction machine frame
ELGO NC control panel front left
Positioning electro-motorized backgauge
Target/actual position input
Adjustment by three-phase motor via toothed belt
Support table with ball transfer rollers
Grip recesses in table plates
Front finger guard
Hydraulic sheet metal hold-down clamps
Freely movable foot switch
Emergency stop button front
Movable scrap diverter rear
Operating instructions and circuit diagram
EHT pneumatic sheet metal holding device for thin blanks
EHT extra-long side stop with mm scale and support foot
EHT front movable support arm
