EHT TSS 4-31

Sheet width: 3100 mm
Plate thickness: 4.0 mm
Stainless steel thickness: 2.5 mm
Cutting angle adjustment: 1.0°
Back stop adjustable: 10–1000 mm
Back stop adjustment speed: 180 mm/s
Downholder: 21 pcs
Strokes per minute: 18–31
Oil volume: 160 L
Control: ELGO P8511
Column arm: 200 mm
Distance between columns: 3050 mm
Hydraulic pressure: max. 300 bar
Voltage: 400 V
Main drive power: 9.0 kW
Machine weight: 4800 kg
Machine dimensions (LxWxH): 3660x2070x2140 mm

Electro-hydraulic sheet metal shear swing cut
All-steel welded machine frame
ELGO NC control model P8511
Control panel front left
Electro-motorized rear stop positioning
Target/actual position value input
Adjustment by three-phase motor via toothed belt

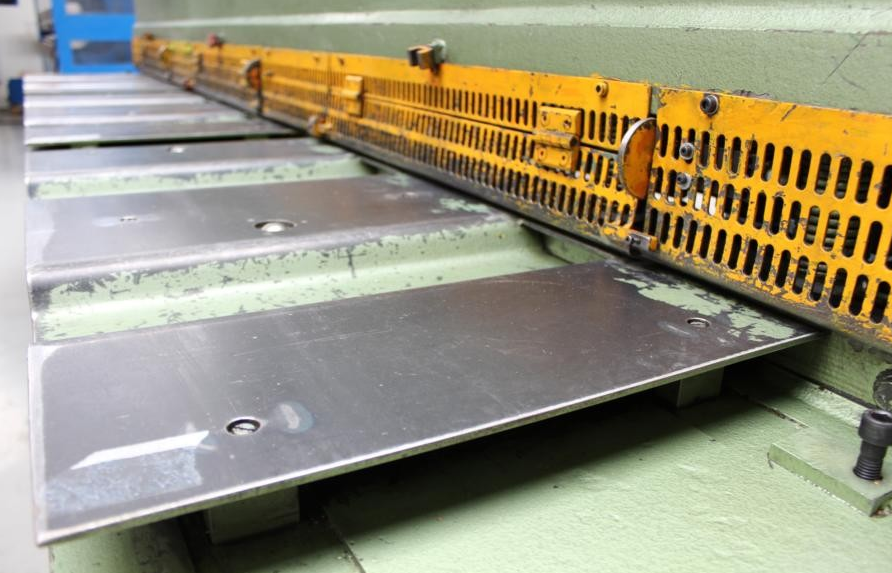

Support table with ball rollers
Recessed grips between table plates
Front finger guard
Hydraulic sheet metal hold-down device
1 freely movable foot switch
Emergency stop button at the front
Movable scrap switch
Original operating instructions and circuit diagram
EHT pneumatic sheet metal holding device for thin sheet metal cuts
EHT extra long side stop 3000 mm with mm scale and support foot
EHT extra long support arm 3000 mm with scale and support foot
EHT additional support arms with mm scale
