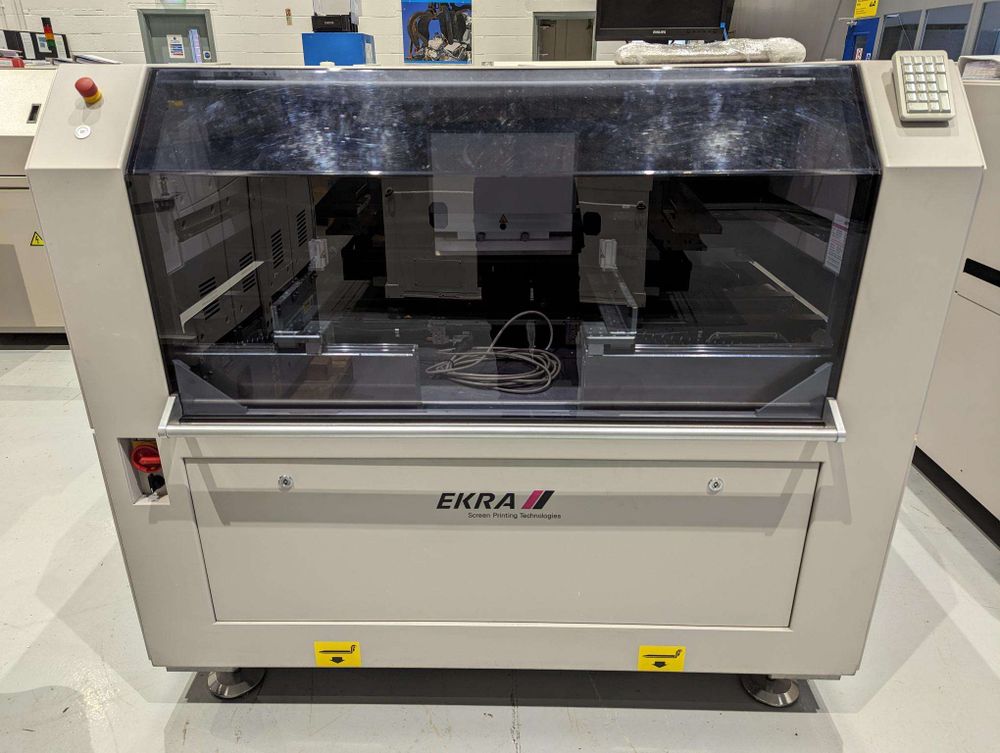

Ekra X5-36

• Machine Type: printer
• Printing Direction: left to right
• Printing Area: max 915 × 610 mm
• Printing Speed: 5–199 mm/s
• Printing Head Configuration: two independent pneumatic heads
• PCB Minimum Size: 80 × 80 mm
• PCB Maximum Size: 915 × 610 mm
• PCB Thickness Range: 0.5–6 mm
• Transport Height Range: 820–950 mm
• Transport Width Adjustment: motor-driven
• Transport Width Control: software controlled
• Transport Speed: 350–600 mm/s
• Power Supply: 230 V, 50/60 Hz
• Air Pressure Requirement: 6 bar
• External Dimensions: W 1650 × D 1860 × H 1400 mm
• Weight: 1050 kg
