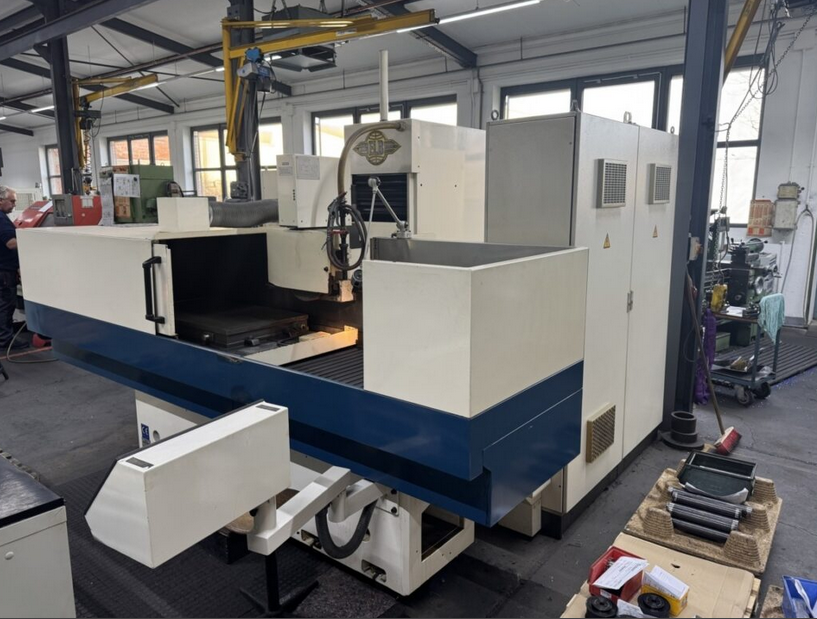

ELB PERFEKT B10 SPS-NK

Grinding length: 1000 mm
Grinding width: 550 mm
Workpiece height: 400 mm
Table surface area: 1580 x 550 mm
Table load capacity: 950 kg
Magnetic clamping plate: 1000 x 550 mm
X axis travel: 1200 mm
Z axis travel: 470 mm
Table feed: 1 - 30 m/min
Vertical feed: 1 - 300 mm/min
Cross feed: 1 - 2000 mm/min
Grinding wheel dimensions: 400 x 100 x 127 mm
Grinding wheel speed range: 1500 - 3500 rpm
Grinding spindle drive power: 11 kW
Total power requirement: 23 kW
Machine weight: 7.5 t
Machine dimensions: 4.50 x 3.20 x 2.90 m

Features
Coolant system
Coolant pump integrated in hydraulic tank
Exhauster
