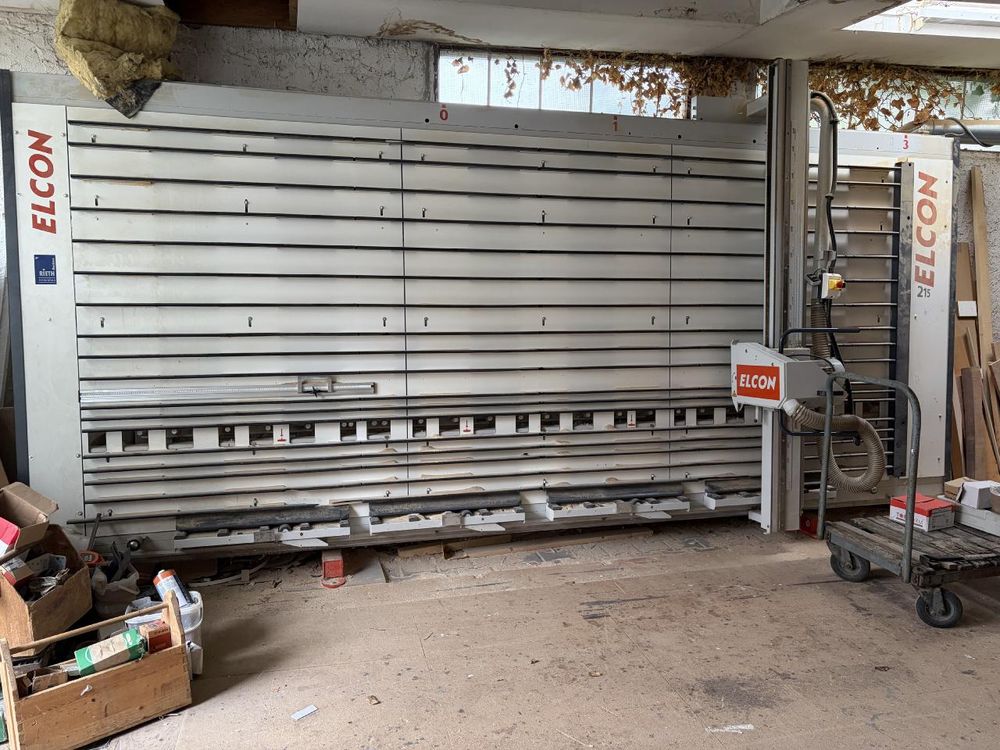

Elcon 215 D

Features and technical specifications:
- Cutting length 5300 mm
- Cutting height vertical 2150 mm, horizontal 2100 mm
- Maximum cutting depth 60 mm
- Saw blade diameter 250 mm; Bore 30 mm
- Motor 4 kW
- Speed ​​5100 rpm
- Material support with rollers
- Fixed support elements for secure workpiece positioning
- Center support: stable support elements at working height, individually foldable

- Dimensional readout for:
- Horizontal saw cuts via scale
- Horizontal saw cuts via strip fence from 50-500 mm

- Vertical saw cuts via fence from 0-1300 mm
- Air pressure connection for pneumatically adjustable slatted frame (required air pressure: 6 bar)
- Scoring system: through double cutting of the main saw blade: The cutting depth of the saw blade is limited
by simply adjusting a fence, so that the saw blade scores the workpiece in sync with the workpiece.
