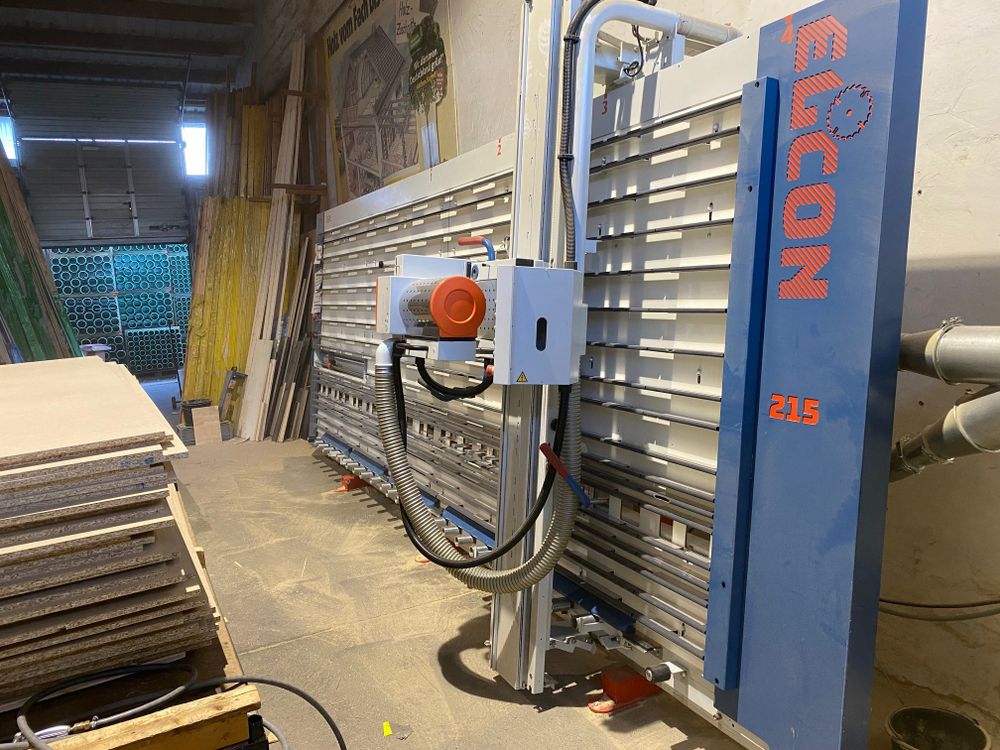

Elcon 215 DSX

Technical description:
Cutting height: vertical 2,150 mm, horizontal 2,070 mm
Cutting length: 5,300 mm
Cutting depth: 80 mm
Saw blade: diameter 303 mm, bore 30 mm,
Z=60 hollow tooth
Saw blade rotation: 5,000 rpm
Motor: 5.5 kW
Required air pressure: 6 bar
Dimension reading for:
Horizontal saw cuts: via scale and via
strip-cutting stop
Vertical saw cuts: via scale from 0 - 1,300 mm
Extraction nozzle: 100 mm

Features:
-5 material support rollers per meter of cutting length
-1 feed roller and 1 discharge roller
-Pneumatic workpiece clamping device between the support rollers
-1 center support element per meter of cutting length
-Torsion-free, free-standing machine frame
-Pneumatically adjustable slatted frame
-Round bar guide, vertical and horizontal
-Fine-adjustable folding stop
-Fine adjustment for horizontal saw cuts via handwheel
-Strip-cutting stop
-Manual programming rail with 5 sliding blocks
-Pneumatic plunge-in of the saw unit
-Pneumatic saw head locking
-Switch unit on the saw unit: start button Stop button
-Control panel with template holder

Includes electronic digital display for the saw unit
Includes electronic digital display for the folding stop
Includes automatically pivoting saw head
