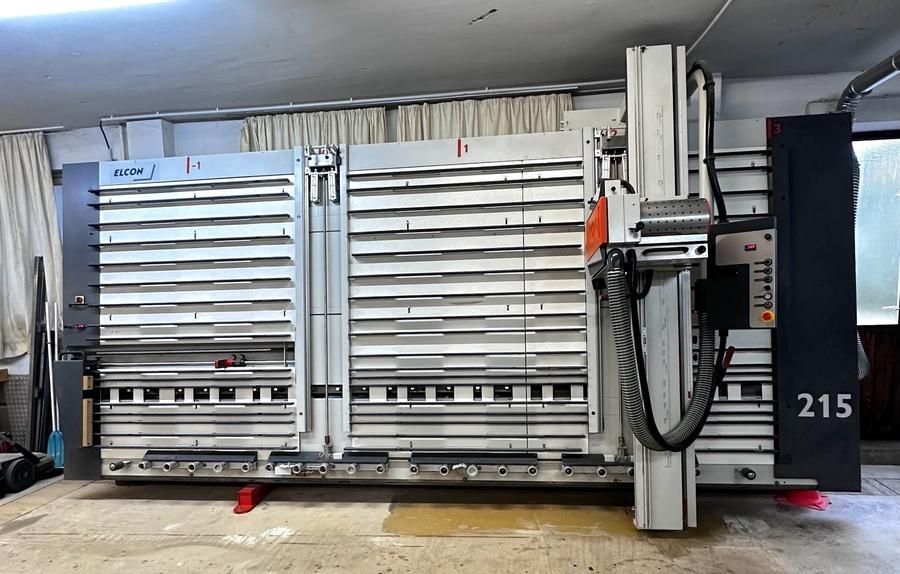

Elcon ADVANCE 215 DSX

Vertical panel saw
Used machine still in operation, expected to be available from 01.05.2026
Precision panel saw ELCON ADVANCE 215 DSX - The panel saw for industrial production

Vertical cutting height 0 - 2150 mm
Horizontal cutting height 50 - 2050 mm
Cutting length 4300 mm
Cutting depth 80 mm (55 mm with clamps)
Saw blade protrusion behind the panel 15 mm
Saw blade 303 x 30 mm, Z-60 hollow roof tooth
Saw blade speed 4200 rpm
Motor 3 kW
Air pressure requirement 6 bar

Material support rollers 20 rollers, ball-bearing mounted + 2 feed and discharge rollers
Panel clamping for horizontal saw cuts via pneumatic workpiece clamping device with switch on the control panel
Center support 3 support elements for 3 m support, pneumatically extendable
Dimension readout for horizontal saw cuts via electronic digital display with zeroing
(for strip cutting from top to bottom) / via scale from 0 - 2100 mm / via strip cutting stop from 75 - 730 mm
Dimension readout for vertical saw cuts via electronic digital display / via scale from 0 - 1300 mm
Extraction nozzles 100 mm for the saw unit and 120 mm for the extraction channel on the right side of the machine frame

Equipment features ADVANCE consisting of 2 pneumatic clamping jaws that move motor-driven
along the vertical axis on a ball screw from top to bottom (the jaws can support panels weighing up to 150 kg)
Electro-pneumatic scoring system for tear-free cuts via a double cut with the main saw blade
Torsion-free, freestanding machine frame
Round bar guide for vertical and horizontal travel
Pneumatically retracting slatted guide prevents the saw blade from cutting into a rear wall slat (strip)
Extraction nozzle for the saw head to collect dust in front of the workpiece
Extraction nozzle for 3 vertical extraction channels to collect dust behind the workpiece
Fine-adjustable folding fence for vertical cuts, guided on a 30 mm round bar
Fence extension
Fine adjustment for horizontal cuts via handwheel
Fold-out strip cutting stop with ball bearing sensor on the upper panel edge, adjustable from 75 - 730 mm, for repetitive saw cuts
Manual programming rail for setting 5 different horizontal fixed dimensions
Pneumatic lowering of the saw unit via a lowering lever
Pneumatic saw head locking from the control panel for horizontal cuts
Guide holder
Minimum strip height with Advance clamping jaws 400 mm
