ELE-1325A TC

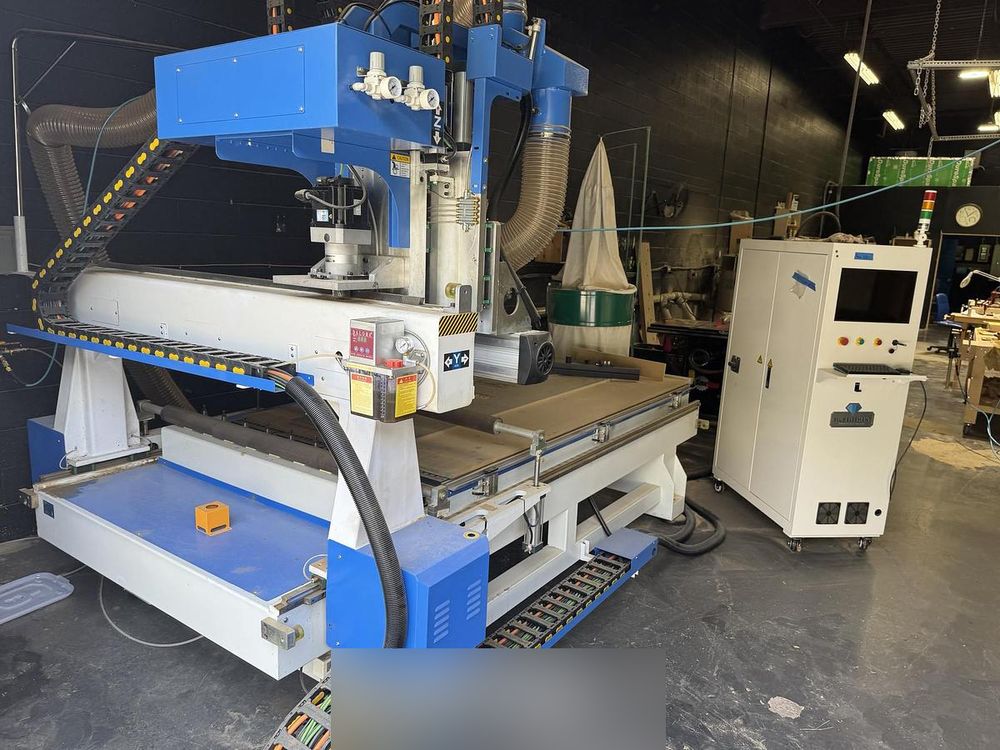

Blue Elephant ELE-1325A TC Used flat table cnc
CNC router
Working area: 1300*2500*400 mm
- 9kw HQD ATC air cooling spindle, 18000RPM, Chinese famous brand
- 11kw fuling inverter
- With 7.5kw saw blade, 400mm diameter, can cut 100mm thickness
Page 1 of 4# Taiwan Syntec 1000W absolute value servo motor with drivers, Z axis has brake function
- Japan Shimpo reducer
- Taiwan Syntec 60CB control system
- T-slot & vacuum working table
- Taiwan squire linear guide, 25mm
- Helical rack
- Linear tool change magazine 8pcs with 8pcs tool holder
- 7.5kw Tongyou vauum pump, chinese famous brand with great quality
- 3kw double bag dust collector
- Press roller
- 5 sets Clamps are used to fix materials. The clamps parts are raised to 80mm. And width can do 230mm
- Positioning strips, used to position the material Electrical: 220V 3ph 60hz
