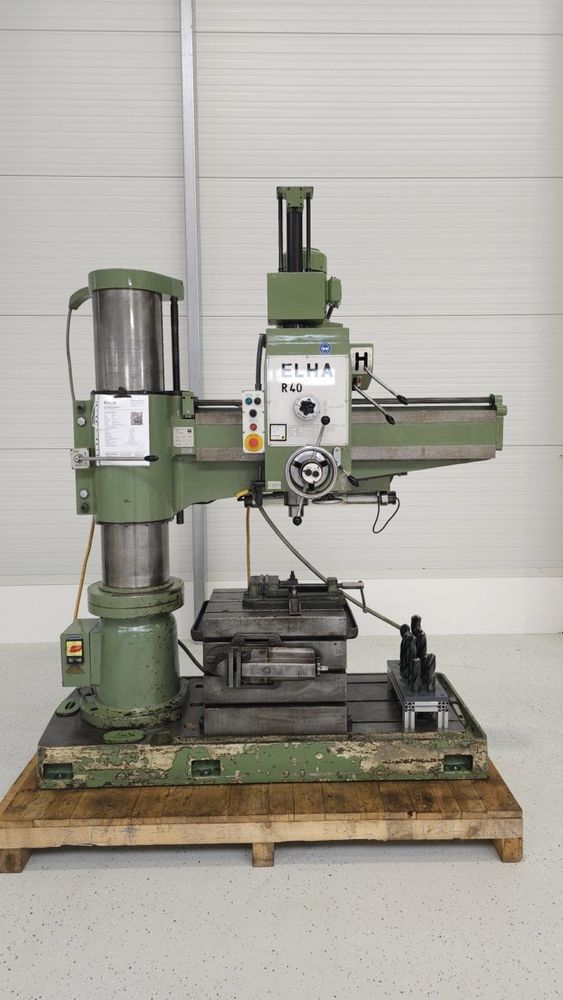

Elha R40 / 1250 1700 rpm
Ref :
2802274-3-AW
Condition :
Used
Manufacturer :
Elha
Model :
R40 / 1250
Spindle Speed :
1700 rpm
Year(s) :
1997
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
Bore capacity in steel (diameter): 40 mm
Bore capacity in cast iron: 60 mm
Arm length: 1250 mm
Turning speeds: 29–1700 rpm
Morse taper: MK5
Bore spindle stroke: 310 mm
Voltage: 400 V
Bore radius max/min: 425–1400 mm
Column diameter: 300 mm
Distance spindle to table surface: 300–1320 mm
Crossrail adjustment vertical: 710 mm
Base plate: 1200 x 640 mm
Swivel range of arm: 360°
Machine dimensions: 2200 x 760 x 2700 mm
Machine weight: 2600 kg
