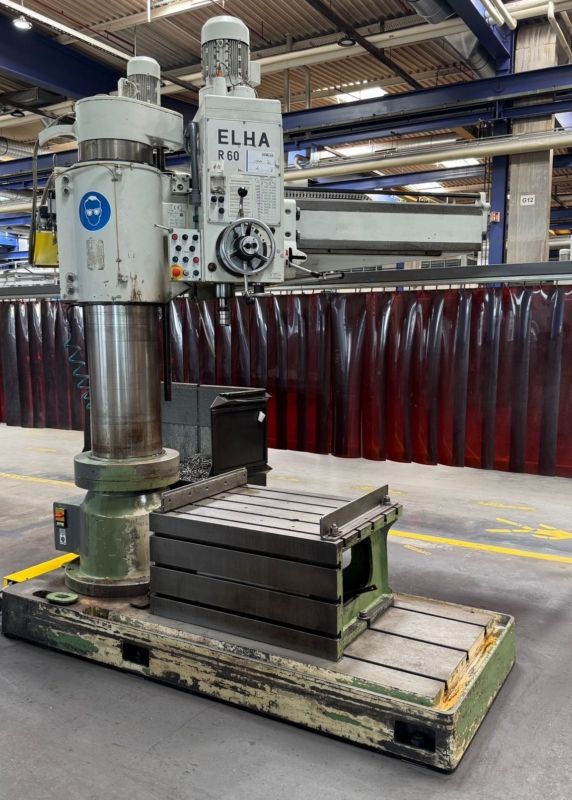

Elha R60-1600 1450 rpm
Ref :
2743864-3-MT
Condition :
Used
Manufacturer :
Elha
Model :
R60-1600
Spindle Speed :
1450 rpm
Year(s) :
1996
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
Conventional control
Bore capacity in steel: 60 mm
Arm length: 1600 mm
Maximum workpiece height: approx. 1300 mm
Borehole diameter in steel: 80 mm
Borehole diameter in cast iron: 100 mm
Threading in steel: M55
Spindle speed range: 29–1450 rpm
Number of spindle speeds: 12
Boring spindle diameter: 100 mm
Morse taper: MT5
Spindle stroke: 350 mm
Total power requirement: 7.5 kW
Machine weight: approx. 4600 kg
Machine dimensions: approx. 2600 x 1100 x 3200 mm
