Elkhart 45 O.B.S. Press 45 ton

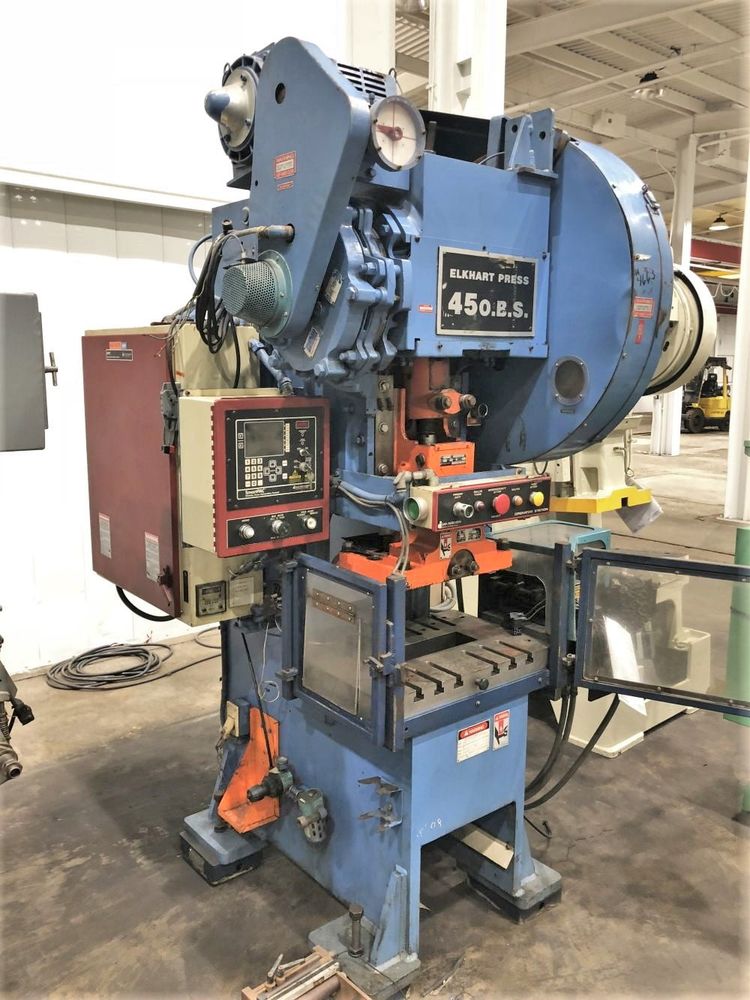

ELKHART 45 O.B.S. Press
1996

Capacity: 45 ton
Stroke: 3″
Shut height: 12.375″ SDAU
Bed area: 28″ R-L x 18″ F-B
Speed: 100–200 SPM (Eaton Dyna-Matic eddy current drive)
Motor: 7.5 HP, 230/460V, 20.4/10.2 A
Ram area: 18″ R-L x 12″ F-B, flanged ram with die block
Ram adjustment: 3″ manual
Bolster: 3″ thick x 28″ R-L x 18″ F-B, T-slotted, with 20″ x 5″ hole
Clutch: Air clutch and brake
Electrics: Wintriss SmartPAC solid-state automation controls
Approx. dimensions: 9′ H x 5′ R-L x 6′ F-B (footprint: 33″ R-L x 43″ F-B)
Approx. weight: 8,500 lbs

Equipped with:
6.5″ wide Waddington servo feed (R-L), No. 14280, 220V
Steel frame construction
Bijur recirculating lubrication system
Air counterbalanced ram
