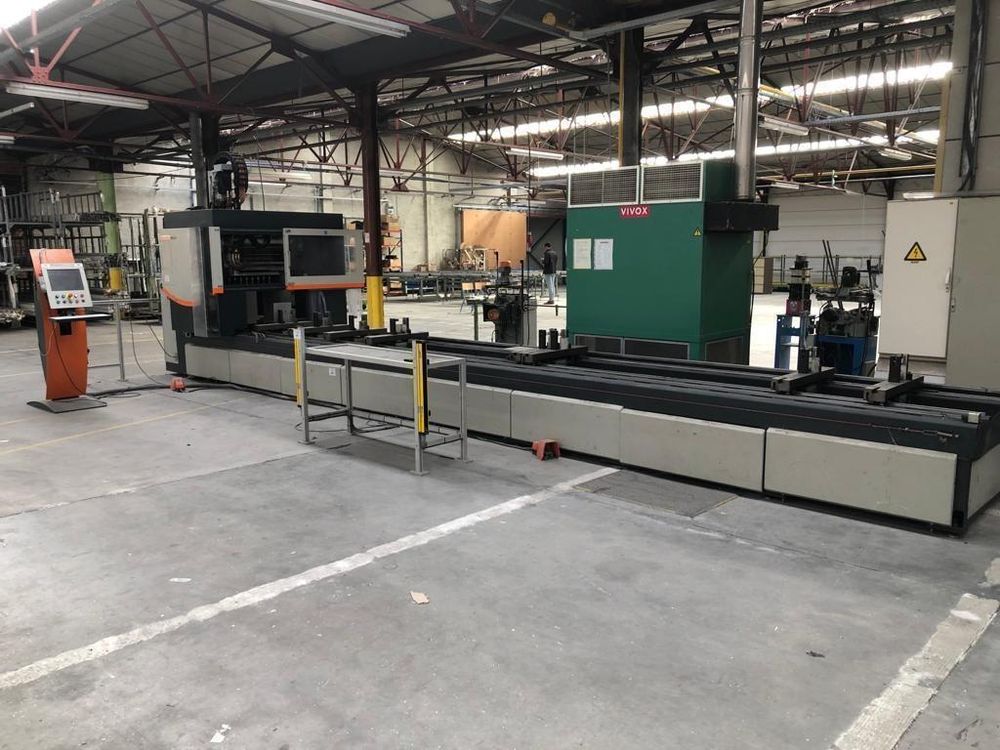

Elumatec SBZ 140 4 Axis

X-axis travel 7900 mm
Y-axis travel 850 mm
Z-axis travel 650 mm
4 axes
Can machine up to 5 sides of a profile
Maximum machining length with profile head machining 7480 mm
Maximum machining length without profile head machining 7600 mm
Axis-controlled milling head 0°–180°
8 tools
Toolchanger yes
Number of toolholders 8 positions
8 movable clamps
Automatic profile measuring system
Automatic detection of clamp position
Automatic positioning of terminal equipment
Separate clamping system (shuttle)
2 pneumatic zero attack
Barcode reader
Remote control console
Microdosing system (tool lubrication)
Safety cover
Safety light
Central chip removal
Spindle taper HSK-63 F
Spindle power 6 kW
Spindle speed max 21,000 rpm
Implementation software control version 9.1.1.10 / 2.31e (new 2025)
Machine length 11,400 mm
Machine depth 3350 mm
Machine height 2700 mm
Machine weight 4.9 ton
