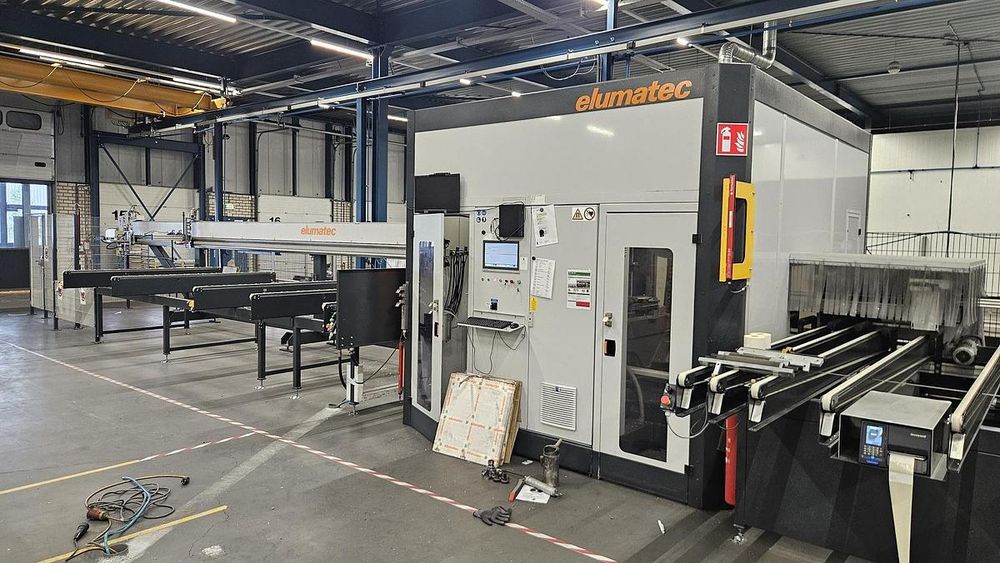

Elumatec SBZ 628 XXL 3 Axis

Max. profile cross-section (BxH): 320 x 160 / 160 x 320 mm
Min. profile cross-section: 30 x 10 mm
Raw bar length: 7,600 mm
Finished part length: 350 - 7,600 mm
Loading magazine left for automatic production
5 freely usable milling spindles per profile cross-section
360° continuously positionable milling spindles
360° continuously adjustable cutting angles
Spindle units up to 8 (pre-controllable)
Various cutting strategies 22.5° - 157.5° (tilt)
Additional saw unit 45° - 135° (tilt)
Combined notch cuts
Quick-change systems for rollers and clamping plates
Mode for manual insertion and clamping of unstable profiles
Spacious soundproof cabin
Easily accessible operating and maintenance elements
Processed profiles placed on unloading magazine
Shortest raw bar length: 1,500 mm
Number of swings: 5
Support positions: 10 (over 120 mm 3-5)
Linear servo drive for transport
Gripper adjustment electrically Y/Z
Standard gripper rotation
Residual piece processing fully automatic
Axes at machining station: 5
Saw axes: 3 + 3
Saw blades (diameter): 2 x 550 mm
Saw angles: 22.5° - 157.5° (tilt), 45° - 135° (tilt)
Notch cuts standard (top and rear)
Unloading station with lift
Number of swings at unloading: 8
Unloading belt width: 4,000 mm
