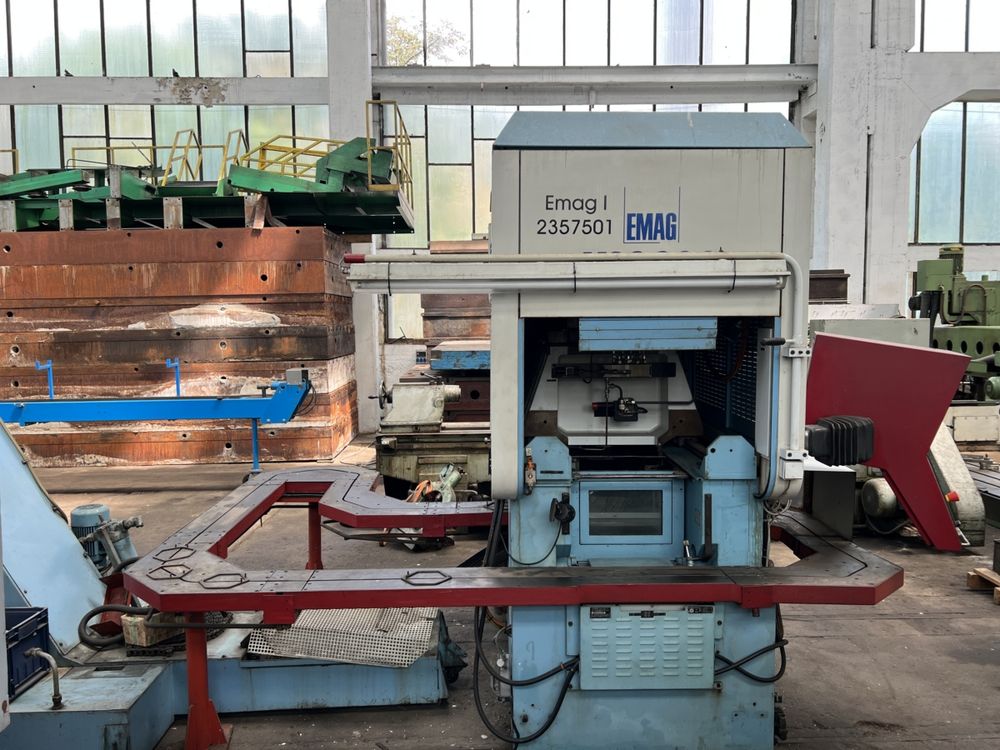

Emag Siemens 840C 6,000 RPM VSC 200 2 Axis
Ref :
2806728-3-GO
Condition :
Used
Manufacturer :
Emag
Controller :
Siemens 840C
Spindle Speed :
6,000 RPM
Model :
VSC 200
Nb Of Axis :
2 Axis
Year(s) :
1995
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
X-Axis Travel: 550 mm
Z-Axis Travel: 200 mm
Rapid Traverse (X/Z): 30 / 20 m/min
Control: Siemens 840C
Measuring Probe
Direct Linear Measuring System
Glass Scales on All Axes
Maximum Turning Diameter: 290 mm
Spindle Speed: 6,000 RPM
Spindle Torque: 480 Nm
Driven Tools Power: 7.8 kW
Feed Rate: 11 m/min
Chuck Diameter: 200 mm
12-Position Sauter Turret
VDI 40 Tool Interface
Chip Conveyor
Heidenhain Revolving Pick-Up Storage Belt
Parts Loading Feed Belt
Total Power: 35 kW
Weight: 6,500 kg
Spindle Head Replaced (2007)
Feed Unit Replaced
