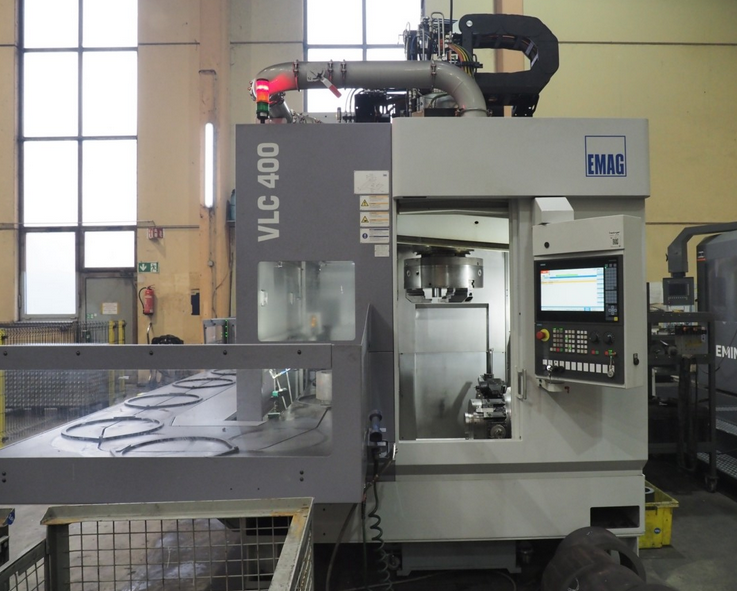

Emag VLC 400 Swing diameter 520 mm

X-axis travel 995 mm
Y-axis travel ±30 mm
Z-axis travel 580 mm
Turning diameter 400 mm
Turning height 300 mm
Swing diameter 520 mm
Chucking diameter max. 500 mm
Workpiece weight 60 kg
Main spindle drive power 37 kW
Tool drive speed max. 6000 1/min
Tool turret with 12 work positions BMT75
Total power requirement 55 kW
Machine weight approx. 13.5 t

Circulating workpiece transport system O-design
Drag frame system for 10 workpieces
Coolant supply 15 bar
Coolant pump flow rate approx. 80 l/min at 15 bar
Cooling unit 6.5 kW water-air
Dual-circuit cooling technology for thermal balance
Spindle drive, control cabinet, and turret temperature regulated
Dual coolant filter manually switchable
Filter mesh 100 µm with contamination indicators
Chip conveyor hinged belt design rear discharge
Chip discharge height 1100 mm with 500 l coolant reservoir
Emulsion mist extraction capacity approx. 800 m³/h
Flushing gun
Workpiece measurement with probe
Blow-off measuring probe
Tool life monitoring sister tool management
Tool breakage monitoring TOOLINSPECT MCU-EUROPA
Axial drilling and milling head BMT75 CC
5x 90° angle drilling and milling heads BMT75 CC i=1:1
Tool set for OP10 + OP20
Hydraulic full clamping cylinder size 150 with 1 media feed-through
Max. tensile force 10,850 daN at 70 bar
Coolant through spindle
Programmable clamping pressure adjustment
3-jaw power chuck KNCS-N 500-155 quick-change
Max. chuck speed 2200 rpm DIN 6386
Set of hard base jaws
Set of soft top jaws
Attachments for KNCS-N 500-155
Flushing nozzle in chuck bore
Additional tool holders with tools
Operating instructions and maintenance manual
