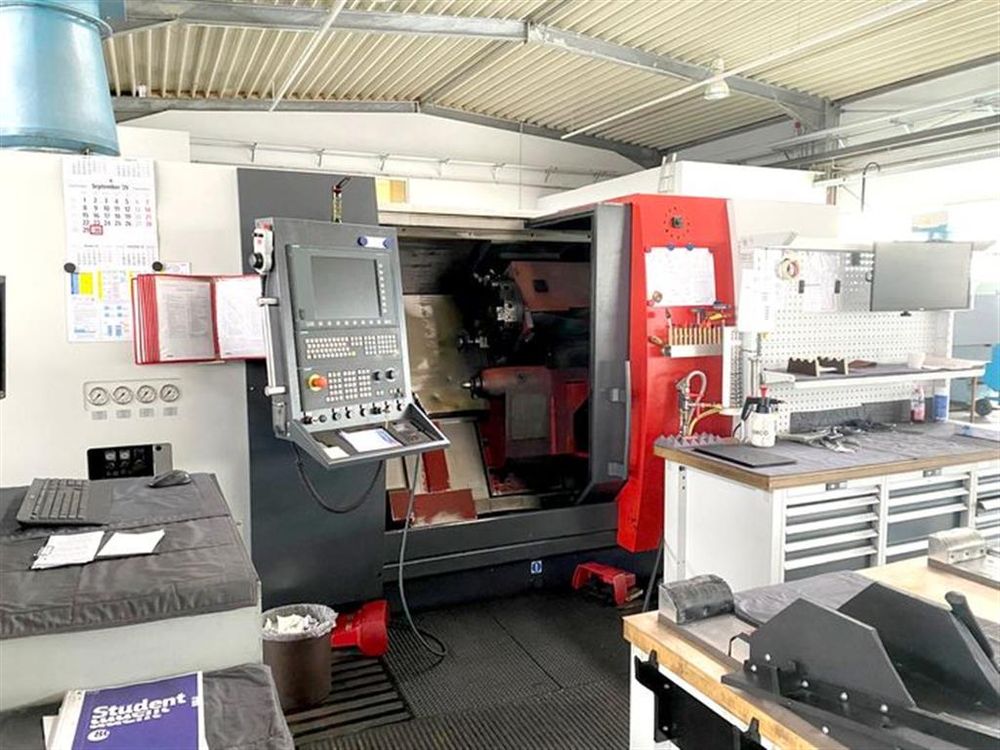

Emco CNC CONTROL 2500 rpm MAXXTURN 95 MY 4 Axis

Travel X/Y/Z Rapid: 24 / 12 / 30 m/min
Y Axis: -60 / +80 mm
Maximum Turning Diameter: 500 mm
Maximum Turning Length: 1300 mm
Spindle Distance (Center): 1430 mm
Swing Over Bed: 700 mm
Spindle Bore: 106 / 95 mm
Spindle Speed Range: 0–2500 rpm
Spindle Torque: 690 / 1040 Nm
Spindle Motor Power: 28/42 kW
Tool Holder: VDI 40
Tool Turret: 12 Positions
Driven Tool Positions: 12
Tool Drive Speed: 4000 rpm
Tool Drive Torque: 45 Nm
Tool Drive Power: 8 kW
Spindle Brake: Mechanical
Spindle Connection: A2-8
Tailstock: Yes, hydraulic quill, MK4, Z-axis sliding
C Axis: Included
Hydraulic Steady Rest: Included
Chip Conveyor: Right side
Three-Jaw Chuck: Included
Total Power Requirement: 46 kVA
Machine Weight: 11 t
Machine Dimensions: 6.6 x 2.25 x 2.15 m
