Emco CNC Control 4000 rpm Turn 365 2 Axis

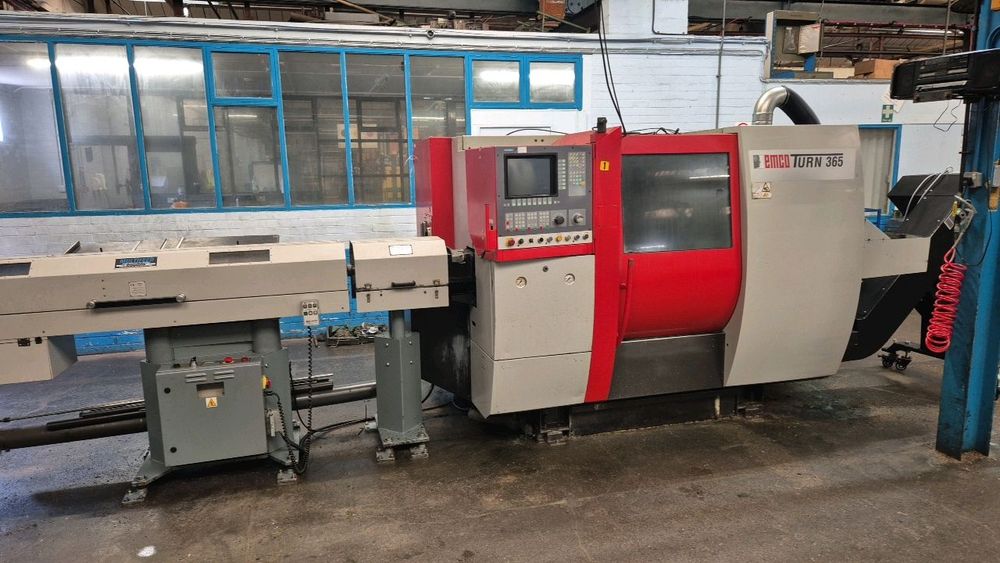

EMCO Turn 365
Year: 1998

Turning length: 600 mm
Greatest pass round over bed: 600 mm
Swing diameter over face slide: 360 mm
Max. turning diameter: 420 mm
Max. parts length: 520 mm
Max. bar diameter: 65 mm
Slide travel X-axis: 210 mm
Slide travel Z-axis: 610 mm
Turning speed range: 0 - 4200 rpm
Max. torque on the spindle: 192 Nm
Spindle bore: 65.5 mm
Distance spindle to counter spindle: 760 mm
Distance spindle to tailstock: 805 mm
Rapid traverse X-axis: 24 m/min
Rapid traverse Y-axis: 24 m/min
Resolution of C-axis: 0.001°
Spindle indexing: 0.01°
Magazine places: 12
Power capacity: 6.7 kW
Alternate turning speed range: 0 - 4000 rpm
Tailstock travel: 500 mm
Max. clamping force: 8000 N
Traversing speed: approximately 20 m/min
Total power requirement: 18 kW
Machine weight: approximately 3900 kg
Machine dimensions: approximately 3000 x 1910 x 1880 mm
