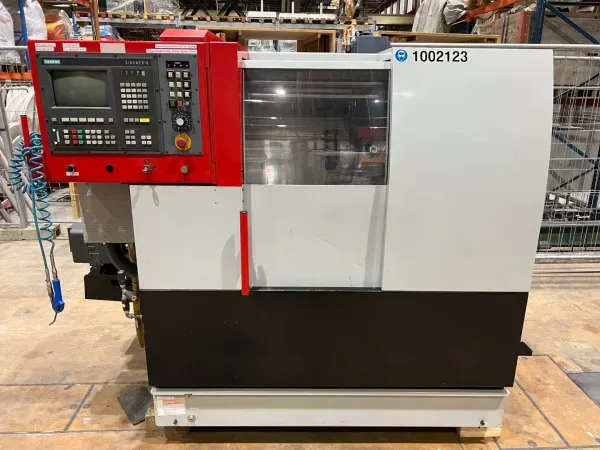

Emco CNC CONTROL Variable Speed EMCOTURN 342 CNC LATHE 2 Axis

Center height 170 mm
Center distance 400 mm
Max turning length 255 mm
Max swing over bed 340 mm
Max swing over cross slide 158 mm
Max workpiece weight 30 kg
Spindle head DIN 55025
Spindle nose size A5
Spindle front bearing diameter 80 mm
Spindle bore 53 mm
Max chuck diameter 200 mm
Max torque 90 Nm
Number of carriage slides 1
Number of cross slides 1
Carriage stroke 300 mm
Cross slide stroke 150 mm
Tailstock quill taper MK4
Tailstock quill diameter 60 mm
Tailstock quill stroke manual/automatic 120 mm
Max tailstock travel manual 300 mm
Feedrate carriage 0.001–12000 mm/min
Feedrate cross slide 0.001–12000 mm/min
Rapid traverse 12 m/min
Feed force 6000 N
Thread pitch metric 0.001–100 mm
Spindle speed 6000 rpm
Floor space 2.3 x 2.2 x 1.8 m
Weight 2300 kg
Bar feeder Sameca
Accessory cabinet
Optics
Tools (drills, steels, inserts)
Tool holders
Jaw set
Collet set
Complete documentation
