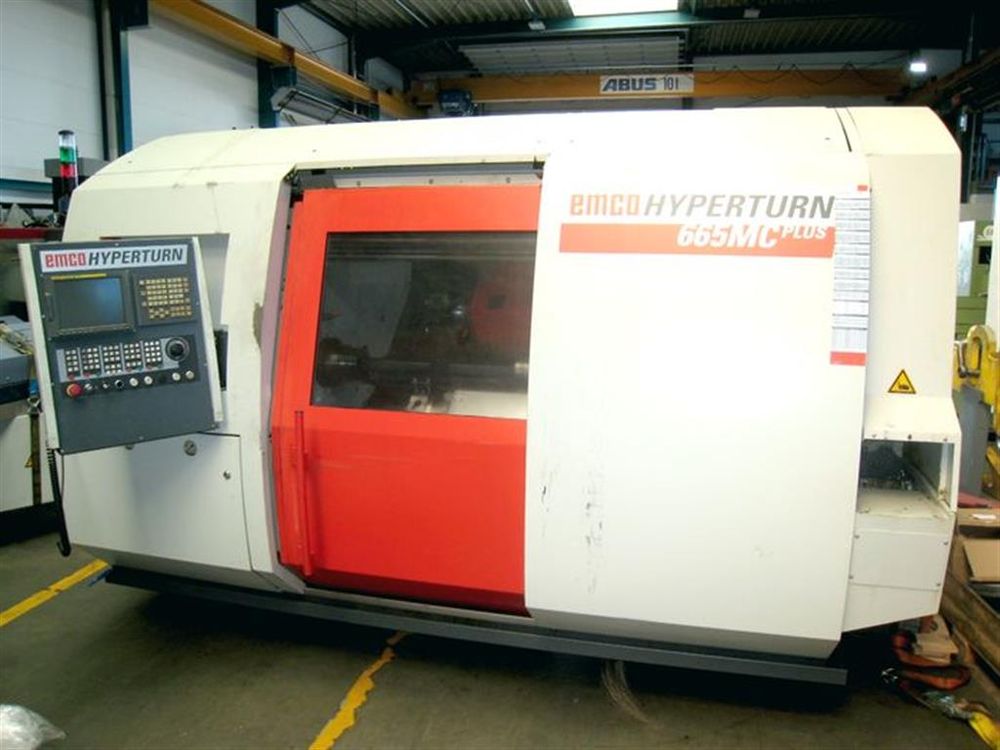

Emco FANUC 18i-TB CNC control 5,000 rpm HT665 MCplus 2 Axis

Y-axis travel: 100 mm (±50 mm)
2 C-axes
C-axis indexing: 0.001°
FANUC 18i-TB CNC control
Water-cooled spindles
High-pressure coolant system: 2 × 14 bar
Collet chuck on main spindle
Collet chuck on sub spindle
Bar feeder: ENTL 10-65
Chip conveyor
Bar capacity: 65 mm
Turning length: 644 mm
Swing over bed: 600 mm
Swing over carriage: 430 mm
Main spindle speed: 5,000 rpm
Sub spindle: Yes
Sub spindle speed: 5,000 rpm
Driven tool speed: 4,000 rpm
2 × 12-position VDI 30 turrets
2 × 12 driven tool stations
Power requirement: 30 kVA
Machine dimensions: 3.5 × 2.5 × 2.3 m
Machine weight: 8 t
Operating hours: approx. 54,500 h
Automatic cycle hours: approx. 30,500 h
Feed hours: approx. 14,000 h
Very large tooling package
