1/1

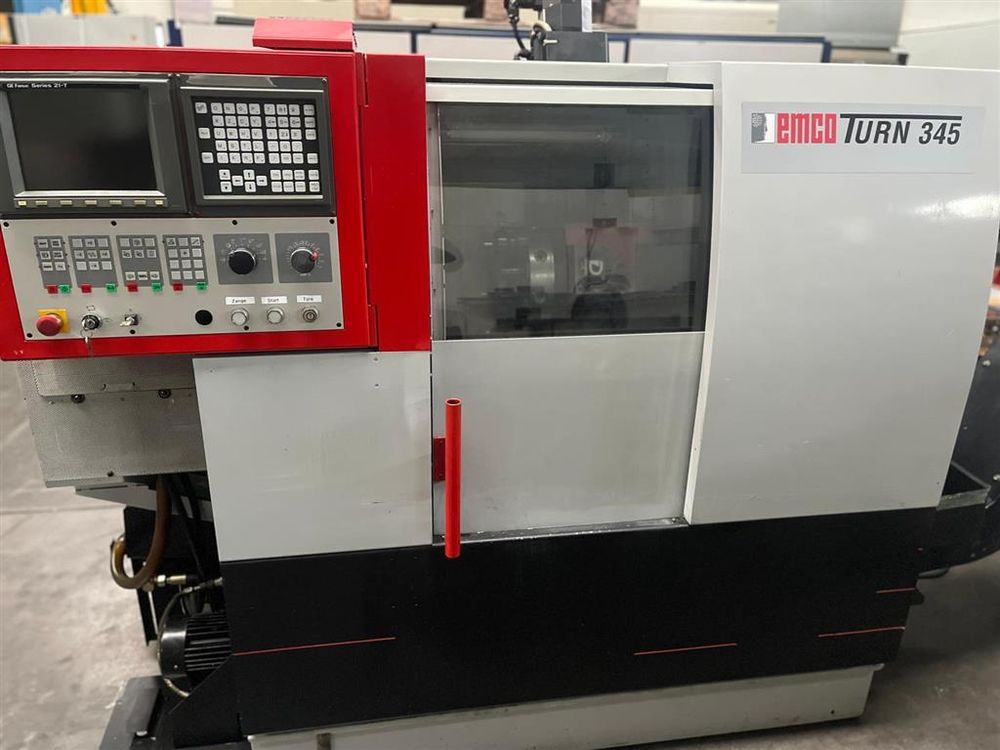

Emco Fanuc 21T 6300 U/min Turn 345 2 Axis
Ref :
2788802-3-AW
Condition :
Used
Manufacturer :
Emco
Controller :
Fanuc 21T
Spindle Speed :
6300 U/min
Model :
Turn 345
Nb Of Axis :
2 Axis
Year(s) :
1999
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
Turning diameter over bed: 430 mm
Turning diameter over face-slide: 210 mm
Turning length: 510 mm
Facing movement (X-axis): 150–160 mm
Longitudinal traverse (Z-axis): 300–510 mm
Control: Fanuc 21T
Revolutions per minute: 6300 U/min
Max. torque on spindle: 17.5 Nm
External spindle diameter in forward position: 45 mm
Tool turret – number of stations: 8
Main spindle capacity: 11 kW
Electrics – voltage/frequency: 400/50 V/Hz
Total power requirement: 17 KVA
Weight approx.: 2.4 t
Dimensions approx. L×W×H: 2.2 × 1.4 × 2.0 m
