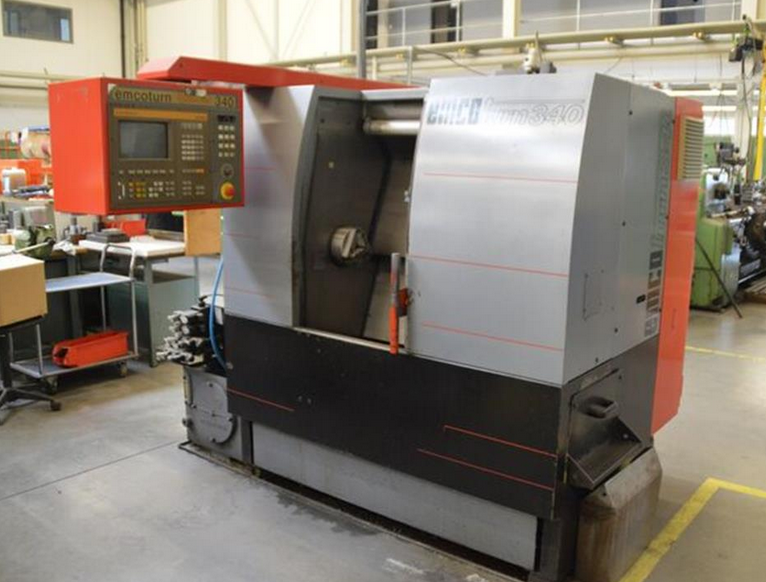

Emco Siemens 810T Control 4.000 U/min Turn 340 2 Axis
Ref :
2787845-3-AW
Condition :
Used
Manufacturer :
Emco
Controller :
Siemens 810T Control
Spindle Speed :
4.000 U/min
Model :
Turn 340
Nb Of Axis :
2 Axis
Year(s) :
2000
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
Facing movement (x-axis): 300 mm
Longitudinal traverse (z-axis): 300 mm
Rapid motion - x-axis: 6 m/min
Siemens 810T Control
Tool turret - number of stations: 8
Revolution per minute: 60 - 4.000 U/min
Main spindle capacity: 11/15 kW
Max. torque on the spindle: 106 - 145 Nm
External spindle dia. in forward position: 80 mm
Turning diameter over bed: 340 mm
Turning dia. over face-slide: 158 mm
Turning length: 300 mm
Feed motor: 8500 N
Tailstock adjustment: 120 mm
Total power requirement: 20 KVA
Electrics - voltage/frequency: 380/50 V/Hz
