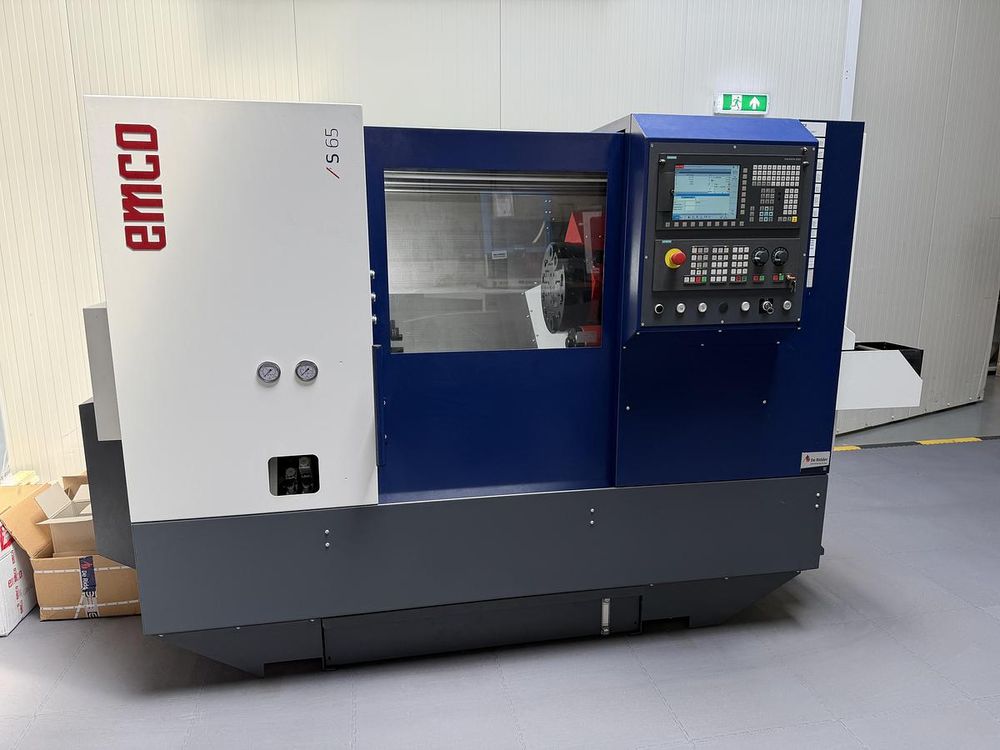

Emco Siemens 828D with ShopTurn 4200 rpm S65 3 Axis

Ref : 2801707-3-MT

Condition : Used

Manufacturer : Emco

Controller : Siemens 828D with ShopTurn

Spindle Speed : 4200 rpm

Model : S65

Nb Of Axis : 3 Axis

Year(s) : -

Quantity : 1

Location : Seller or machines location:
EUROPE (Western and Northern)

X-axis travel: 210 mm
Z-axis travel: 610 mm
C-axis: 1000 rpm / 0.001°
Rapid traverse (X/Y/Z): 24 m/min
Control system: Siemens 828D with ShopTurn
Swing over bed: 540 mm
Swing over cross slide: 360 mm
Maximum turning diameter: 310 mm
Maximum turning length: 520 mm
Chuck diameter: 210 mm
Spindle bore: 73 mm
Spindle speed: 60–4200 rpm
Spindle motor power: 18 kW
Spindle nose: KK6 (DIN 55026)
Turret type: VDI 30
Tool positions: 12 (all driven)
Tailstock taper: MK4
Coolant system: 10 bar high-pressure pump
Tool measuring arm
Chip conveyor (pending delivery)
Bar feeder preparation
Machine weight: 4,300 kg
Machine dimensions: 2852 × 1722 × 1880 mm
