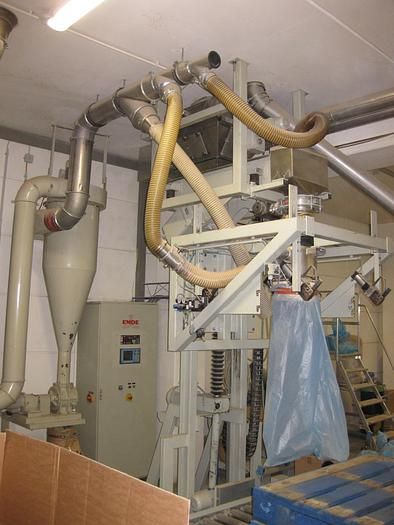

Emde BFP 1500 E

You program the desired setpoint value on the big bag scale.

Empty pallets are placed on the roller conveyor 3.1 and via the pushbutton

Pallet” on an external control unit acknowledged.

The empty pallet is driven to the scale of the roller conveyor 3.2 and the BigBag scale is tared to zero

An empty big bag must be hooked into the load hooks and the

Filling nozzles are pulled over the expansion hose on the filling tube ( external pushbutton S6

Expanded hose.
The filling is started via the “Start Big-Bag” button:
The filling head moves to the top position
The filling flap opens and the dosing channel conveys the

Target quantity in the big bag
After reaching the filling quantity, the filling flap closes.

Open the load hooks and inflate the expansion hose.

By pressing the pushbutton “Big-Bag-Abset” the full big bag of

the roller conveyor 3.2 on 3.3 for manual closing.
After manual closing, the pallet is driven to the following line 1 via the “Big-Bag-Tied” button.


Drain carton filling:
You program the desired setpoint value on the big bag scale.

Empty boxes are placed on the roller conveyor 5.1.
The filling tube is positioned above the empty carton
The filling is started via the “Start Carton” button:
The carton is placed via the pneumatic brake hose under the

Roller conveyor 5.2 locked.
Open the filling flaps Y1 and Y2 and convey the dosing channel in the coarse
Fine current the target quantity in the carton.
After reaching the filling quantity, the filler flaps close and the

Brake hose vented.
The operator pushes the full carton into the locking machine.
The closure machine is controlled via a potential-free contact,
when the operator presses the “Close Carton” button.
