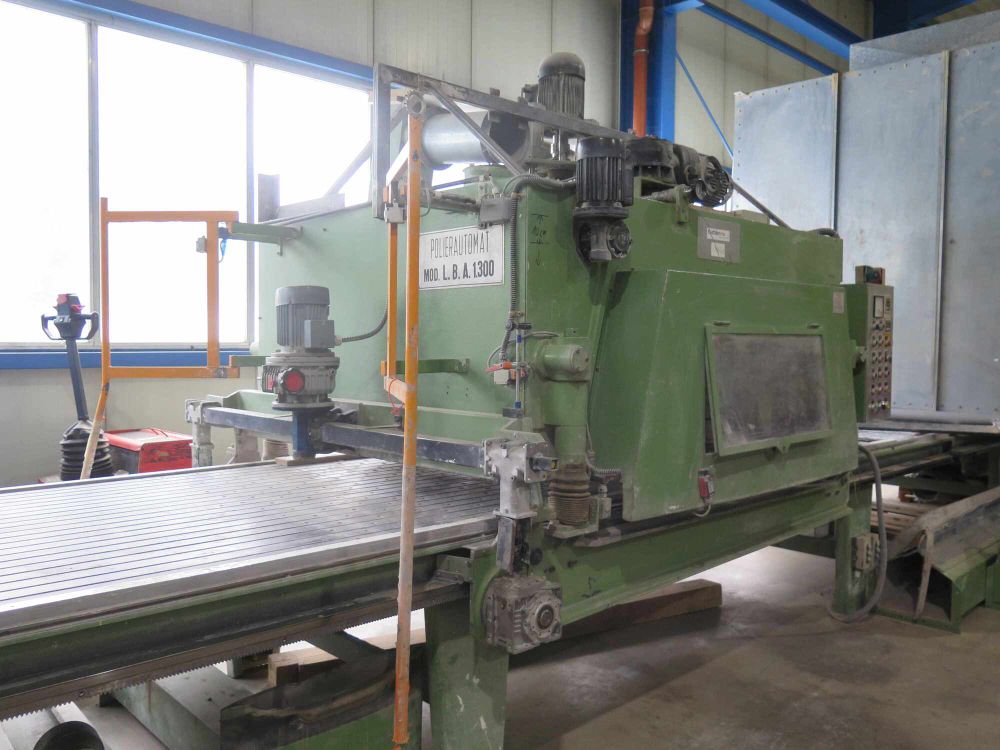

Emme Elle LBA 1300 automatic
EUROPE (Western and Northern)
Surface Polishing Machine
Working width: 1300 mm
Maximum height of workpiece to be polished: 100 mm
Vacuum table with 2 working levels
Table length: 6 meters each with vacuum clamping
While polishing is taking place on one level, the second can be used,
or the workpieces can be removed and repositioned.
It uses 4 rotating and oscillating polishing rollers.
Includes 4 new polishing rollers!
Rotation adjustable from 5-25 rpm.
Feed speed adjustable from 2-5 m/min.
After the polishing process is complete, the rollers lift off the workpiece and four rotating discs, equipped with special foam, polish the surface.
The rotation and direction of rotation, as well as the polishing time of the rollers and polishing discs, can vary.
Connected load 26 kW
4 polishing units, 500 mm long
Polishing roller diameter 200–350 mm
Includes 4 new polishing rollers and wave polishing rings, 350 mm diameter
The machine is immediately available and ready for use
Machine dimensions: Length 12,000 mm x Width 2,000 mm x Height 2,550 mm
Tables can be divided for loading (2 x 6,000 mm)
Weight (complete) approx. 5.000 kg
