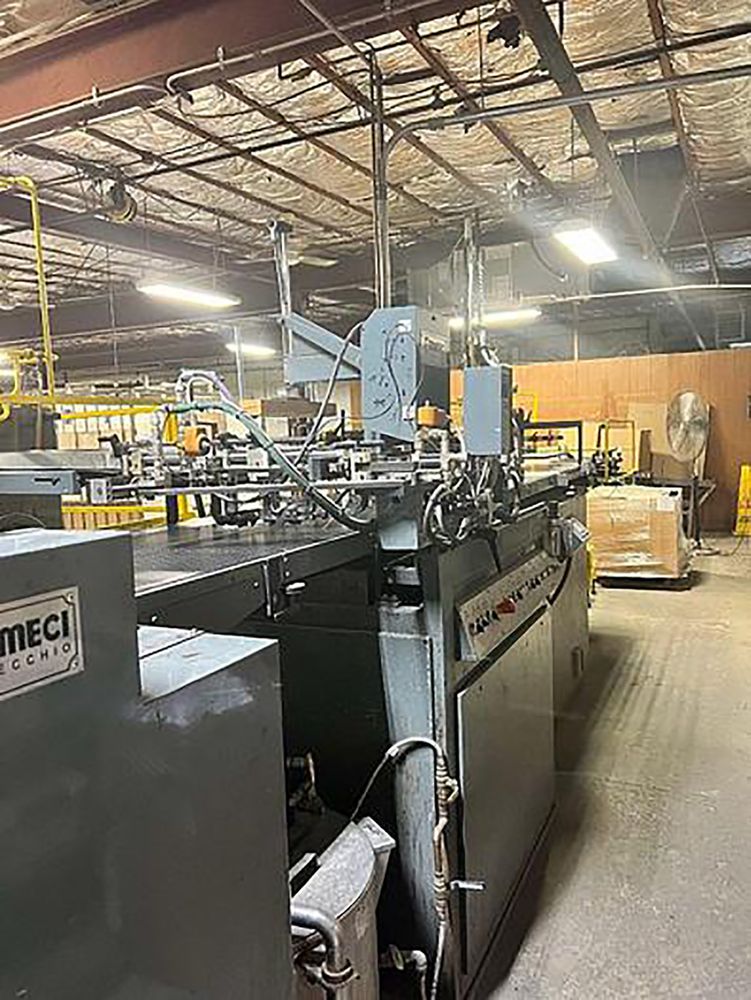

Emmeci MC 92SB

Automatic mechanical line for rigid set up boxes
The EMMECI MC92 Automatic Rigid Box Line It consists of 4 parts:
MC1 – automatic glue application (hot melt)
MC2 – an automatic machine that puts a complex cardboard box on the covering material
MC3 – wrapping machine
MC4 – automatic machine for folding cardboard and gluing the edges of the box with tape

The MC1, MC2, MC3 automatic units constitute a whole and are functionally coupled with each other
– they work together, while the MC4 automatic unit can cooperate with the MC1- MC2-MC3 line, but it can work independently.
The line can produce boxes with dimensions (length, width, depth): – minimum 125x50x12 mm – maximum 600x400x125 mm
For very large and very small boxes, the acceptable dimensions of the veneer should also be taken into account: – maximum 850×610 mm – minimum 180×95 mm

Other catalog parameters:
– efficiency – up to 42 boxes per minute (depending on the size of the box)
– applicator accuracy +/- 0.25 mm
– maximum height of the cardboard stack 1000 mm
– veneer feeder capacity – approx. 3000 pcs.
– capacity of the container with glue – 65 l.
– maximum diameter of the rolls of adhesive tape – 400 mm Installation parameters: – net weight – approx. 5000 kg
– power consumption – approx. 16 kW
– compressed air consumption = approx. 10 l / min
– compressed air pressure – 5-8 atm
dimensions of the machine 4x7x4 m
