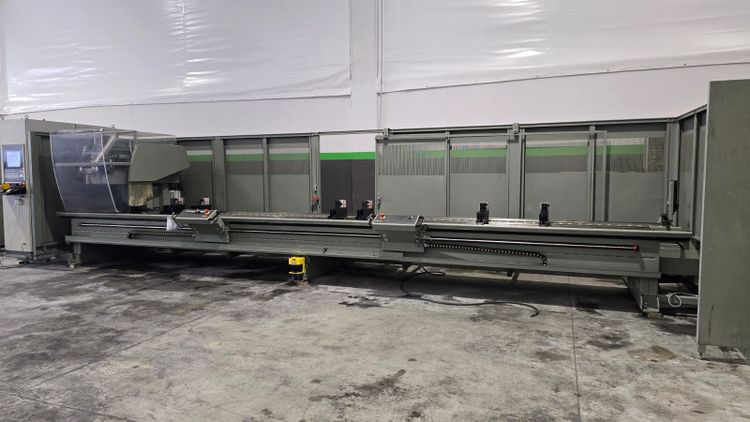

Emmegi Comet E and Commuter

Emmegi Comet E Pendolare machining center
X axis (longitudinal axis) mm 7280
Y axis (transverse axis) mm 525
Z axis (vertical axis) mm 380
A axis rotation (spindle rotation) mm from 0° to 180° continuous
Maximum X axis positioning speed m/min 80
Maximum Y axis positioning speed m/min 60
Maximum Z axis positioning speed m/min 30
Maximum A axis positioning speed From 0° to 90° in 1”
Electrospindle power kW 7
Electrospindle speed rpm variable up to 20.000
HSK-40E tool attachment cone
Tool magazine capacity n. 8
Number of vices n. 8
Automatic vice positioning
Installed power kW 16
Differential circuit breaker on power line A 0,3
Weight t 4,8
Operating pressure bar 6 ÷ 8
