Emmes H EBP 500 . 10

Ref : 2774480-15-GO

Condition : Used

Manufacturer : Emmes

Model : H EBP 500 . 10

Year(s) : -

Quantity : 1

Location : Seller or machines location:
EUROPE (Western and Northern)

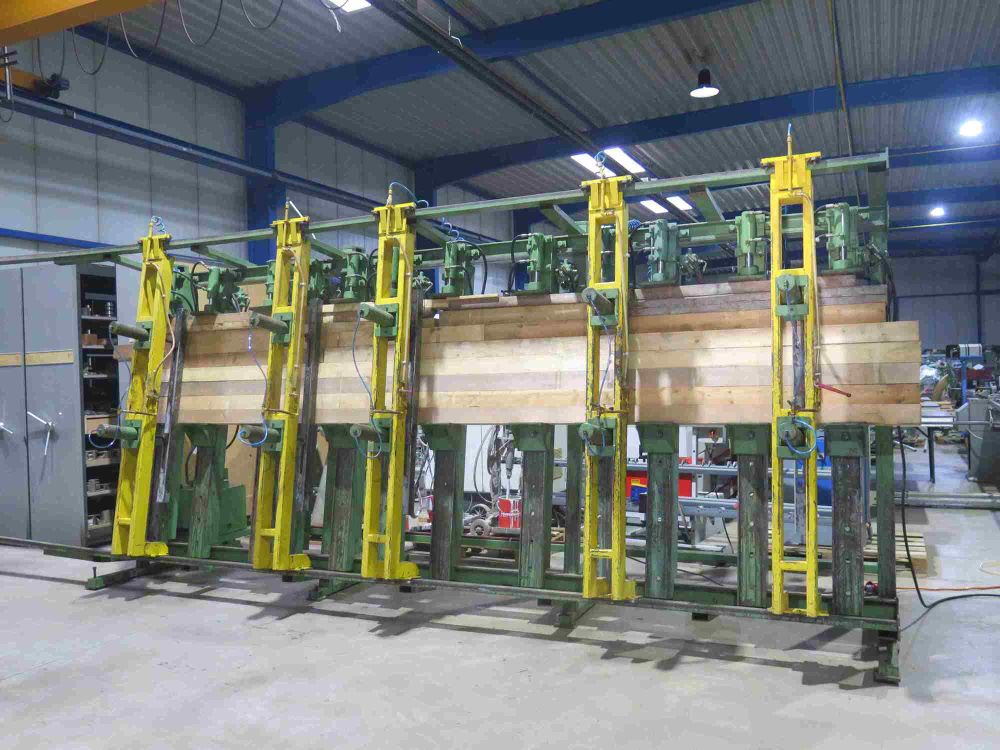

Hydraulic Beam Press
Working length 5000 mm
Working height 1530 mm
Maximum insertion depth 200 mm
Pressure plates: 200 mm wide x 150 mm deep
12 hydraulic vertical press rams from above
5 pneumatic front hold-downs, each with 2 press rams
Hydraulic pressure from above
Pneumatic pressure from the front
Each press ram can also be switched individually
Max. pressing force 150 kg/cm²
Hydraulic pump 2.2 kW
Oil pressure 159 kg/cm²
Air pressure 8 kg/cm²

Weight 2,800 kg
Pressing surface length 5000 mm
Overall dimensions : 6400 mm x 1700 mm x H 2520 mm
